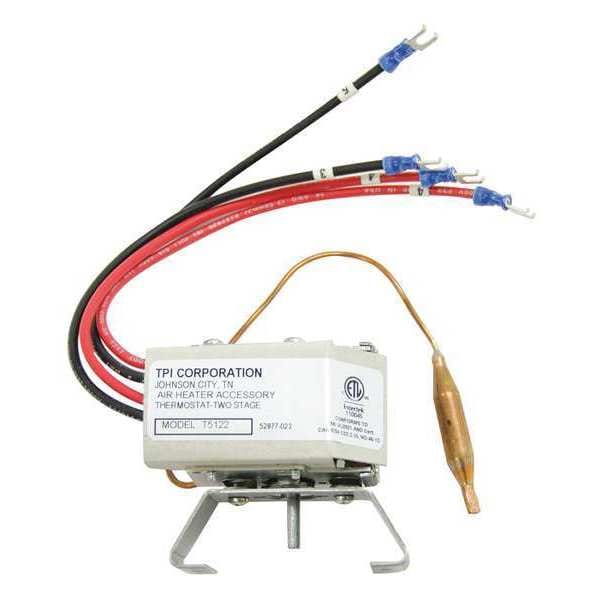

Thermostat, 38 ft., 4"D x 5"W, DPST, 38 ft.
| Amps AC | 25 A |
|---|---|
| Temp. Range | 45 to 90 deg F |
| Mounting Type | Unit Mounted |
| Hz | 50/60 |
| Fits KW | 25 to 50 |
| Voltage Range | 125VA |
| Phase | 3 |
| Floor Coverage Dia. | 38 ft. |
| Width | 5 in |
| Item | Electric Wall & Ceiling Heater Thermostat |
| Includes | Remote Capillary Temperature Sensor, Wire Leads |
| Depth | 4 in |
| For Use With | All CA1 Models |
| Height | 8 in |
| Switch Type | DPST |
| Voltage | 125V AC |
| Number of Poles | 3 |
| Thermostat Control Amperage | 25 A |
| Overall Dimensions - H x W x D | 4-1/2 in x 3/4 in x 2-1/4 in |
| Max. Operating Temp. | 100 deg F |
| Overall Width | 3/4 in |
| Thermostat Control Voltage | 24V AC |
| Thermostat Control Range | 40 to 100 deg F |
| Overall Depth | 2-1/4 in |
| Contact Rating | 24V AC |
| Overall Height | 4-1/2 in |
| Thermostat Control Type | Mechanical Selector Dial |
| Programming Capability | Not Programmable |
| Housing Color | Black |
| Compatible Manufacturer Model Number | All CA1 Models |
| Maximum Operating Temperature | 100 deg F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
