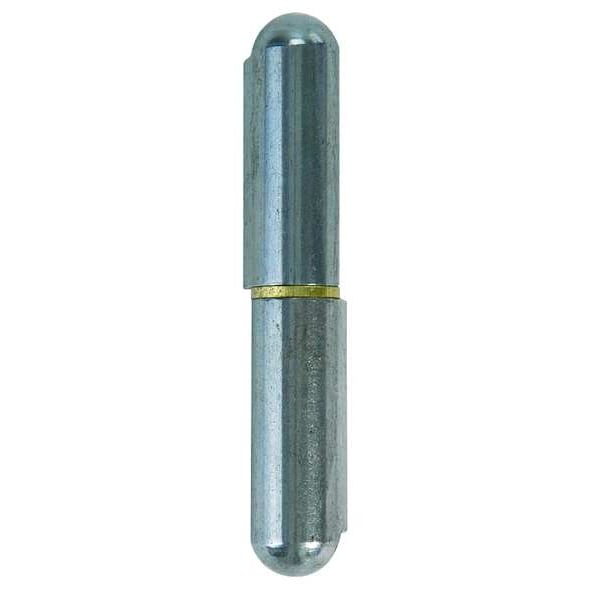

Lift-Off Hinge, Steel, Weld-On Mounting, 29/32 in Leaf W x 5 21/64 in Leaf H, Mill Stainless Steel
| Door Leaf Height | 5-21/64 in |
|---|---|
| Door Leaf Thickness | 0.709 in |
| Door Leaf Width | 29/32 in |
| Finish | Mill Stainless Steel |
| Holes per Leaf | 0 |
| Load Capacity | 440 lb |
| Material | Steel |
| Mounting | Weld-On |
| Orientation | Non Handed |
| Pin Dia. | 1/2 in |
| Range of Motion | 360 deg |
| Features | Hinges Can be Welded in Place Horizontally or Vertically; Suitable for Tight Spaces; Mount Hinge Flush, Offset, Straight |
| Item | Lift-Off Hinge |
| Frame Leaf Height | 5-21/64 in |
| Frame Leaf Width | 29/32 in |
| Ligature Resistant | No |
| Hardware | Not included |
| Pin Material | Steel |
| Frame Leaf Thickness | 0.709 in |
| Pin Type | Nonremovable |
| Holes | Without |
| Range of Motion - Maximum | 360 deg |
| ANSI/BHMA Finish | Unfinished |
| Mounting Style | Full Surface |
| Number of Holes per Leaf | 0 |
| Pin Diameter | 1/2 in |
| Includes Holes | Holes Not Included |
| Includes Hardware | Hardware Not Included |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
