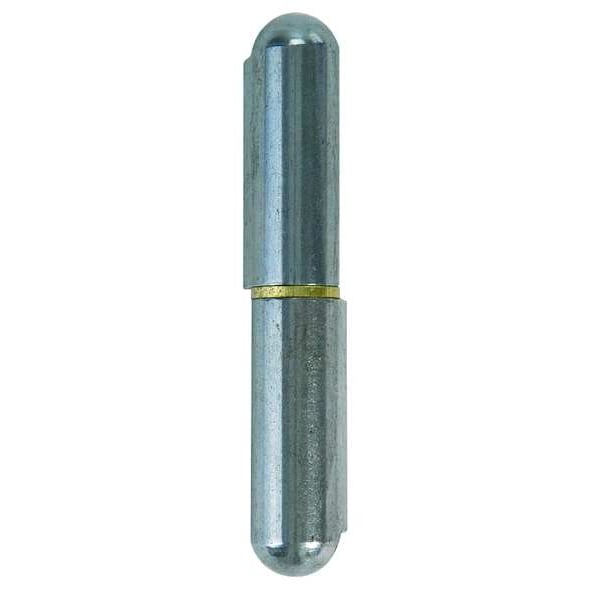

Lift-Off Hinge, Steel, Weld-On Mounting, 3/4 in Leaf W x 4 3/4 in Leaf H, Mill Stainless Steel
| Door Leaf Height | 4-3/4 in |
|---|---|
| Door Leaf Thickness | 0.63 in |
| Door Leaf Width | 3/4 in |
| Finish | Mill Stainless Steel |
| Holes per Leaf | 0 |
| Load Capacity | 360 lb |
| Material | Steel |
| Mounting | Weld-On |
| Orientation | Non Handed |
| Pin Dia. | 3/8 in |
| Range of Motion | 360 deg |
| Features | Hinges Can be Welded in Place Horizontally or Vertically; Suitable for Tight Spaces; Mount Hinge Flush, Offset, Straight |
| Ligature Resistant | No |
| Item | Lift-Off Hinge |
| Hardware | Not included |
| Frame Leaf Thickness | 0.63 in |
| Pin Type | Nonremovable |
| Frame Leaf Height | 4-3/4 in |
| Holes | Without |
| Pin Material | Steel |
| Frame Leaf Width | 3/4 in |
| Pin Diameter | 3/8 in |
| Mounting Style | Full Surface |
| Range of Motion - Maximum | 360 deg |
| ANSI/BHMA Finish | Unfinished |
| Includes Holes | Holes Not Included |
| Includes Hardware | Hardware Not Included |
| Number of Holes per Leaf | 0 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
