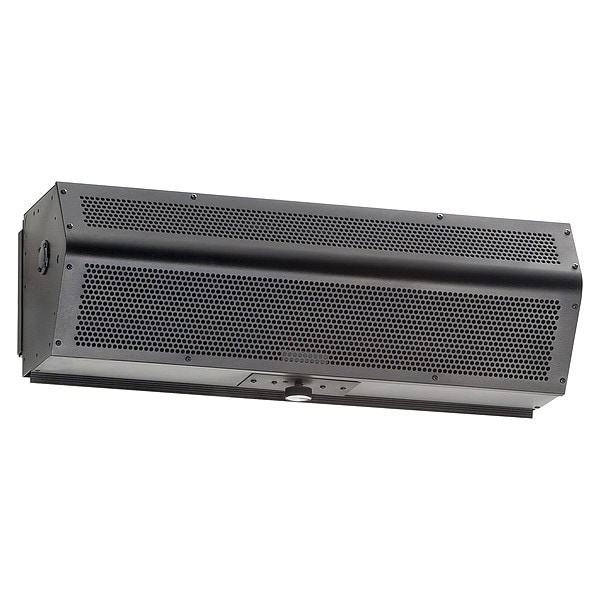

Air Curtain, 11 1/2" D, 8 1/8" H, 25" W
| Item | Air Curtain |
|---|---|
| Phase | 1 |
| Number of Motors | 1 |
| Maximum Air Volume | 625 cfm |
| Overall Width | 25 in |
| Housing Color | Black |
| Number of Speeds | Variable |
| Housing Material | Steel |
| Drive Type | Direct Drive |
| Assembly | Assembled |
| Mounting Height for Temperature Control | 8 ft |
| Includes | Not Applicable |
| Heated/Not Heated | Heated |
| Motor Horsepower per Motor | 0.1667 HP |
| Series | LPV |
| Sanitation Certified | No |
| Finish | Galvanized, Powder Coated |
| Heater Power Consumption | 6.1 kW |
| For Outdoor Use | No |
| Air Temperature Rise | 31 deg F |
| Nozzle Width | 2 in |
| Standards | CSA, ETL Listed, UL Indoor |
| Maximum Operating Temperature | 90 deg F |
| Electrical Connection | Hardwired |
| Profile Type | Low Profile |
| Heat Source | Electric |
| Frequency | 60 Hz |
| Minimum Operating Temperature | 50 deg F |
| Overall Height | 8-1/8 in |
| Overall Depth | 11-1/2 in |
| Motor Type | Continuous-Duty |
| Sound Level @ 10 ft | 49 dBA |
| Mounting Height for Insect Control | 7 ft |
| Control Type | Limit Switch |
| Maximum Air Velocity | 1,800 fpm |
| Motor Enclosure | Totally Enclosed Air Over |
| Full Load Current | 31.2 A |
| Mounting Hole Diameter | 1/4 in |
| Maximum Speed | 1,550 rpm |
| Nameplate Voltage | 208 V AC |
| Grille Material | Galvanized Steel |
| For Frame Opening Width | 2 ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
