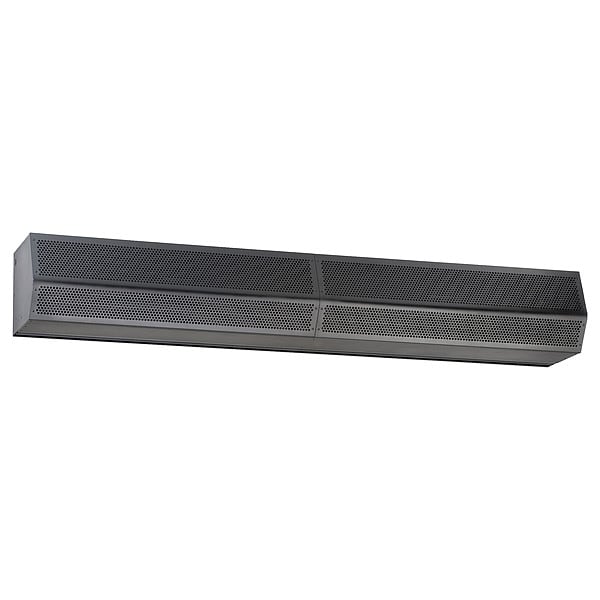

Air Curtain, 12 3/4" D, 10 5/8" H, 120" W
| Item | Air Curtain |
|---|---|
| Phase | 1 |
| Number of Motors | 3 |
| Motor Enclosure | Totally Enclosed Air Over |
| Standards | CSA, ETL Listed, UL Indoor, UL Outdoor |
| Mounting Height for Temperature Control | 12 ft |
| Housing Material | Steel |
| Maximum Air Volume | 4,341 cfm |
| Overall Height | 10-5/8 in |
| Full Load Current | 7.5 A |
| Housing Color | Black |
| Includes | Not Applicable |
| HEPA Air Cleaning | No |
| Drive Type | Direct Drive |
| Power Consumption | 1,570 W |
| Profile Type | Standard Profile |
| Mounting Height for Insect Control | 10 ft |
| Control Type | Limit Switch |
| Mounting Hole Diameter | 1/2 in |
| Sanitation Certified | No |
| Electrical Connection | Hardwired |
| Ultraviolet Air Cleaning | No |
| Assembly | Assembled |
| Frequency | 60 Hz |
| Nozzle Width | 2-1/2 in |
| Maximum Speed | 1,725 rpm |
| Maximum Air Velocity | 2,084 fpm |
| Overall Width | 120 in |
| Overall Depth | 12-3/4 in |
| Series | STD2 |
| Finish | Galvanized, Powder Coated |
| Sound Level @ 10 ft | 71 dBA |
| Heated/Not Heated | Not Heated |
| Motor Horsepower per Motor | 0.5 HP |
| Number of Speeds | 1 |
| For Outdoor Use | Yes |
| Grille Material | Galvanized Steel |
| For Frame Opening Width | 10 ft |
| Air Temperature Rise | Not Applicable |
| Nameplate Voltage | 208/230V AC |
| Heater Power Consumption | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
