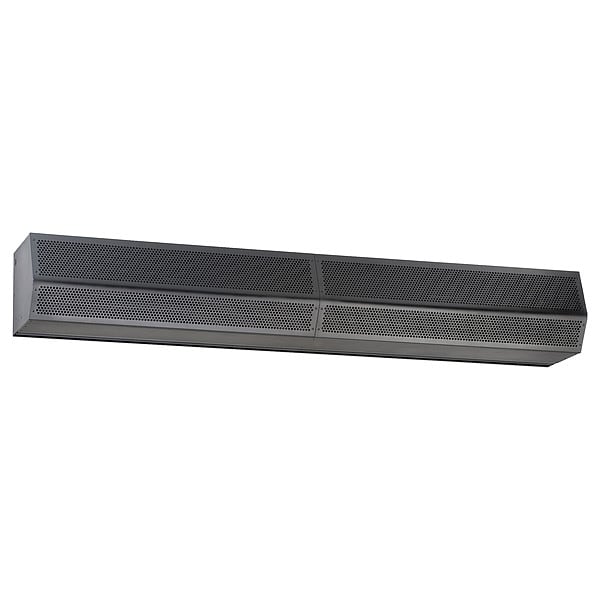

Air Curtain, 12 3/4" D, 10 5/8" H, 96" W
| Item | Air Curtain |
|---|---|
| Phase | 1 |
| Number of Motors | 2 |
| Maximum Air Volume | 2,884 cfm |
| Mounting Height for Insect Control | 10 ft |
| Frequency | 50 Hz |
| Electrical Connection | Hardwired |
| HEPA Air Cleaning | No |
| Motor Horsepower per Motor | 0.5 HP |
| Mounting Height for Temperature Control | 12 ft |
| Profile Type | Standard Profile |
| Number of Speeds | 1 |
| Drive Type | Direct Drive |
| Maximum Air Velocity | 1,730 fpm |
| Motor Enclosure | Totally Enclosed Air Over |
| Housing Color | Black |
| Overall Depth | 12-3/4 in |
| Overall Height | 10-5/8 in |
| Control Type | Limit Switch |
| Series | STD2 |
| Power Consumption | 1,100 W |
| For Outdoor Use | Yes |
| Sanitation Certified | No |
| Assembly | Assembled |
| Nozzle Width | 2-1/2 in |
| Overall Width | 96 in |
| Mounting Hole Diameter | 1/2 in |
| Maximum Speed | 1,425 rpm |
| Includes | Not Applicable |
| Full Load Current | 2.5 A |
| Standards | CSA, ETL Listed, UL Indoor, UL Outdoor |
| Housing Material | Steel |
| Sound Level @ 10 ft | 68 dBA |
| Heated/Not Heated | Not Heated |
| Ultraviolet Air Cleaning | No |
| Finish | Galvanized, Powder Coated |
| Heater Power Consumption | Not Applicable |
| Nameplate Voltage | 220 V AC |
| Air Temperature Rise | Not Applicable |
| Grille Material | Galvanized Steel |
| For Frame Opening Width | 8 ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
