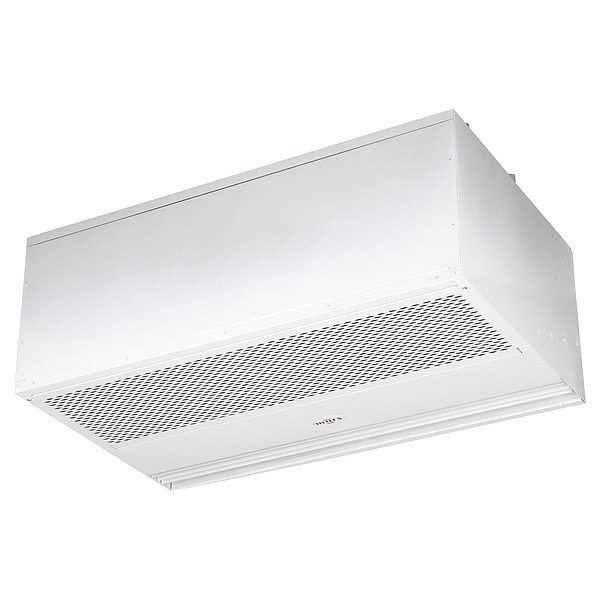

Air Curtain, 26" D, 16 1/2" H, 72" W
| Item | Air Curtain |
|---|---|
| Phase | 3 |
| Number of Motors | 2 |
| Maximum Operating Temperature | 90 deg F |
| Number of Speeds | 1 |
| Drive Type | Direct Drive |
| Full Load Current | 32.6 A |
| Motor Enclosure | Totally Enclosed Air Over |
| Overall Width | 72 in |
| Overall Height | 16-1/2 in |
| Includes | Not Applicable |
| Overall Depth | 26 in |
| Mounting Hole Diameter | 3/8 in |
| Control Type | Limit Switch |
| Heater Power Consumption | 24 kW |
| Maximum Speed | 1,725 rpm |
| Heat Source | Electric |
| Standards | CSA, ETL Listed, UL Indoor |
| Power Consumption | 910 W |
| For Outdoor Use | No |
| Finish | Aluminized, Powder Coated |
| Mounting Height for Insect Control | 10 ft |
| Series | PH (Phantom) |
| Sanitation Certified | No |
| Assembly | Assembled |
| Minimum Operating Temperature | 50 deg F |
| Frequency | 60 Hz |
| Profile Type | Recessed |
| Maximum Air Velocity | 1,623 fpm |
| Nozzle Width | 3 in |
| Housing Color | White |
| Housing Material | Aluminum |
| Maximum Air Volume | 2,434 cfm |
| Electrical Connection | Hardwired |
| Mounting Height for Temperature Control | 12 ft |
| Heated/Not Heated | Heated |
| Sound Level @ 10 ft | 68 dBA |
| Air Temperature Rise | 31 deg F |
| Motor Horsepower per Motor | 0.5 HP |
| Grille Material | Aluminum |
| For Frame Opening Width | 6 ft |
| Nameplate Voltage | 460 V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
