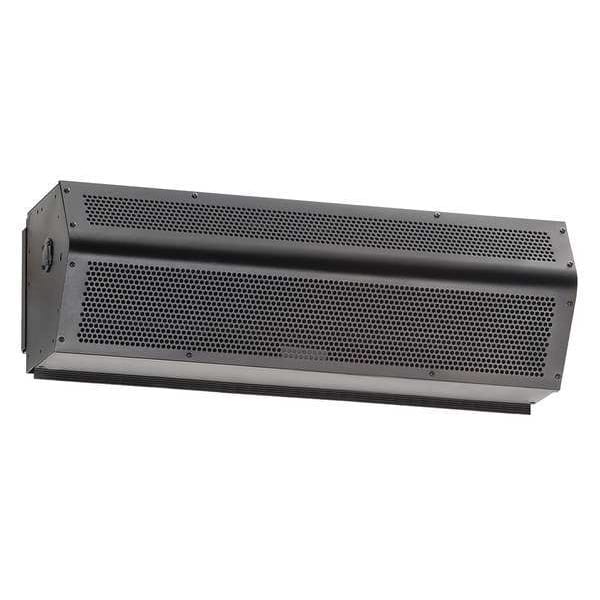

Air Curtain, Low Profile, NSF 37
| Item | Unhtd 8"H 36"W 9"D Steel Air Curtain |
|---|---|
| Width | 36 in |
| Phase | 1 |
| Max. Mounting Height | 7 ft |
| Air Curtain Finish | Galvanized |
| Number of Motors | 1 |
| Height | 8 in |
| Air Curtain Air Velocity | 1,800 fpm |
| Voltage | 115 V |
| Air Curtain Air Volume | 900 cfm |
| Air Curtain Max. Door Width | 3 ft |
| Air Curtain dBA @ 10 Feet | 49 dBA |
| Depth | 8-7/8 in |
| Air Curtain Heated | No |
| Air Curtain Housing Material | Steel |
| Hz | 60 |
| Max. RPM | 1,550 |
| Standards | ANSI/NSF 37, ETL Listed |
| Number of Speeds | Variable |
| Housing Color | Black |
| Motor Enclosure | Totally Enclosed Air Over |
| Air Curtain Item | Low Profile Air Curtain |
| Max. Amps | 2.4 |
| Requires | Door Limit Switch |
| Motor Type | Permanent Split Capacitor |
| Motor HP | 0.1667 |
| Control Type | Door Limit Switch |
| Overall Depth | 9 in |
| Includes | Not Applicable |
| Overall Height | 8 in |
| Overall Width | 36 in |
| Finish | Galvanized, Powder Coated |
| Housing Material | Steel |
| Maximum Speed | 1,550 rpm |
| Minimum Operating Temperature | Not Available |
| Power Consumption | Not Available |
| Maximum Operating Temperature | Not Available |
| Includes Mounting Fasteners | Not Available |
| Profile Type | Low Profile |
| Nameplate Voltage | 115 V AC |
| Sound Level @ 10 ft | 49 dBA |
| HEPA Air Cleaning | No |
| Heater Power Consumption | Not Applicable |
| Mounting Height for Temperature Control | 7 ft |
| Mounting Height for Insect Control | 7 ft |
| Air Temperature Rise | Not Applicable |
| Series | LPN2 |
| Heated/Not Heated | Not Heated |
| Power Cord Length | Not Available |
| Sanitation Certified | Yes |
| Assembly | Not Available |
| Ultraviolet Air Cleaning | No |
| Grille Material | Steel |
| For Frame Opening Width | 3 ft |
| Electrical Connection | Not Available |
| For Outdoor Use | Not Available |
| Nozzle Width | 36 in |
| Maximum Air Velocity | 1,800 fpm |
| Drive Type | Direct Drive |
| Mounting Hole Diameter | Not Available |
| Full Load Current | 2.4 A |
| Washdown | No |
| Maximum Air Volume | 900 cfm |
| Frequency | 60 Hz |
| Motor Horsepower per Motor | 0.1667 HP |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
