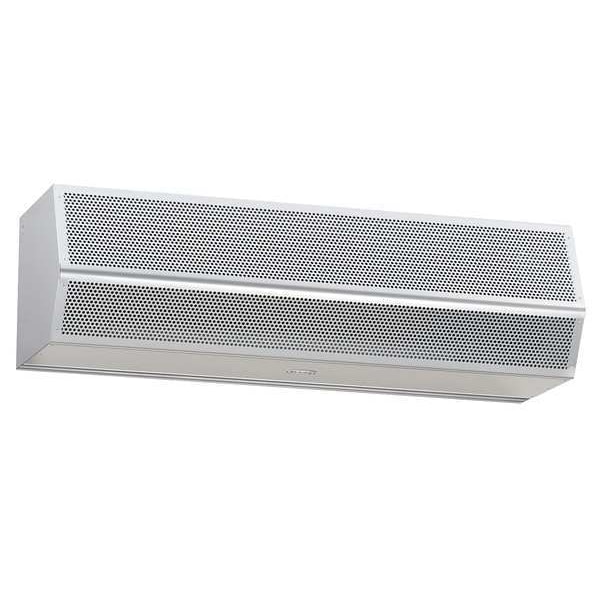

Air Curtain, NSF 37, 42 In
| Item | Unhtd 14"H 42"W 16"D Steel Air Curtain |
|---|---|
| Width | 42 in |
| Phase | 1 |
| Max. Mounting Height | 7 ft |
| Air Curtain Finish | Galvanized |
| Number of Motors | 1 |
| Height | 14 in |
| Air Curtain Air Velocity | 4,570 fpm |
| Voltage | 115 V |
| Air Curtain Air Volume | 2,654 cfm |
| Air Curtain Max. Door Width | 3 ft 6 in |
| Air Curtain dBA @ 10 Feet | 70 dBA |
| Depth | 15-5/8 in |
| Air Curtain Heated | No |
| Air Curtain Housing Material | Steel |
| Hz | 60 |
| Motor HP | 1 |
| Motor Type | Permanent Split Capacitor |
| Max. RPM | 1,750 |
| Number of Speeds | 1 |
| Housing Color | Silver |
| Max. Amps | 9 |
| Requires | Door Limit Switch, Motor Control Panel |
| Motor Enclosure | Totally Enclosed Air Over |
| Standards | AMCA Certified, ANSI/NSF 37, ETL Listed |
| Air Curtain Item | Air Curtain |
| Overall Depth | 16 in |
| Overall Height | 14 in |
| Overall Width | 42 in |
| Control Type | Switch |
| Includes | Not Applicable |
| Finish | Galvanized, Powder Coated |
| Housing Material | Steel |
| Maximum Air Volume | 2,322 cfm |
| Minimum Operating Temperature | Not Available |
| For Frame Opening Width | 3 ft 6 in |
| Nozzle Width | 42 in |
| Electrical Connection | Not Available |
| Profile Type | Standard Profile |
| Heated/Not Heated | Not Heated |
| Sanitation Certified | Yes |
| Power Cord Length | Not Available |
| Full Load Current | 9 A |
| Washdown | No |
| Assembly | Not Available |
| Maximum Speed | 1,750 rpm |
| Ultraviolet Air Cleaning | No |
| Power Consumption | 1,305 W |
| Maximum Operating Temperature | Not Available |
| Includes Mounting Fasteners | Not Available |
| Air Temperature Rise | Not Applicable |
| Drive Type | Direct Drive |
| Frequency | 60 Hz |
| Mounting Height for Insect Control | 7 ft |
| For Outdoor Use | Not Available |
| HEPA Air Cleaning | No |
| Maximum Air Velocity | 6,051 fpm |
| Nameplate Voltage | 115 V AC |
| Heater Power Consumption | Not Applicable |
| Grille Material | Steel |
| Mounting Height for Temperature Control | 7 ft |
| Motor Horsepower per Motor | 1 HP |
| Mounting Hole Diameter | Not Available |
| Sound Level @ 10 ft | 70 dBA |
| Series | NH2 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
