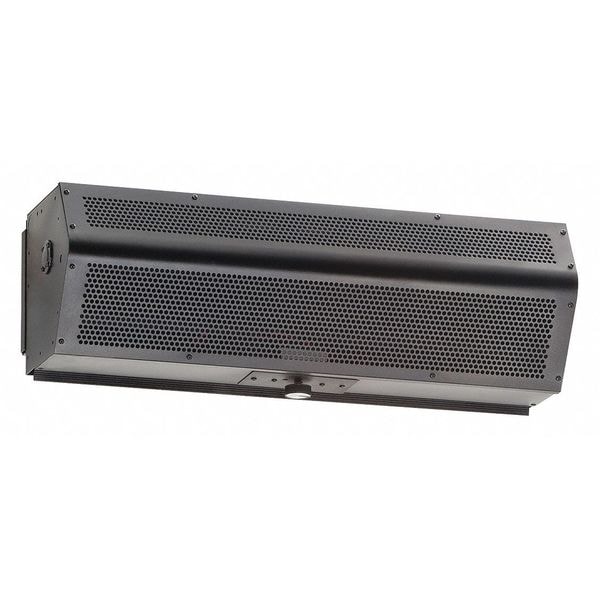

Heated Low Profile Air Curtain, 36 In
| Item | Heated 8"H 36"W 12"D Steel Air Curtain |
|---|---|
| Width | 36 in |
| Phase | 1 |
| Max. Mounting Height | 8 ft |
| Air Curtain Finish | Galvanized |
| Number of Motors | 1 |
| Height | 8 in |
| Air Curtain Air Velocity | 1,800 fpm |
| Voltage | 230 V |
| Air Curtain Air Volume | 900 cfm |
| Air Curtain Max. Door Width | 3 ft |
| Air Curtain dBA @ 10 Feet | 49 dBA |
| Depth | 10-3/4 in |
| Air Curtain Heated | Yes |
| Air Curtain Housing Material | Steel |
| Hz | 60 |
| Motor HP | 0.1667 |
| Motor Enclosure | Totally Enclosed Air Over |
| Max. RPM | 1,550 |
| Motor Type | Permanent Split Capacitor |
| Number of Speeds | Variable |
| Air Curtain Item | Low Profile Air Curtain |
| Requires | Door Limit Switch |
| Housing Color | Black |
| Includes | Thermostat |
| Standards | ETL Listed |
| Max. Amps | 27.7 |
| Heating kW | 6.1 kW |
| Overall Height | 8 in |
| Overall Depth | 12 in |
| Control Type | Door Limit Switch |
| Overall Width | 36 in |
| Finish | Galvanized, Powder Coated |
| Housing Material | Steel |
| Minimum Operating Temperature | Not Available |
| Heater Power Consumption | 6.1 kW |
| Mounting Hole Diameter | Not Available |
| Frequency | 60 Hz |
| Nameplate Voltage | 230 V AC |
| Electrical Connection | Not Available |
| Grille Material | Steel |
| Drive Type | Direct Drive |
| Nozzle Width | 36 in |
| For Outdoor Use | Not Available |
| Profile Type | Low Profile |
| Includes Mounting Fasteners | Not Available |
| HEPA Air Cleaning | No |
| Mounting Height for Temperature Control | 8 ft |
| Heat Source | Electric |
| Series | LPV2 (LoPro 2) |
| Sanitation Certified | No |
| Power Consumption | 6.1 kW |
| Mounting Height for Insect Control | 7 ft |
| For Frame Opening Width | 3 ft |
| Power Cord Length | Not Available |
| Maximum Speed | 1,550 rpm |
| Sound Level @ 10 ft | 49 dBA |
| Full Load Current | 28.2 A |
| Maximum Air Volume | 900 cfm |
| Maximum Air Velocity | 1,800 fpm |
| Washdown | No |
| Ultraviolet Air Cleaning | No |
| Air Temperature Rise | 36 deg F |
| Motor Horsepower per Motor | 0.1667 HP |
| Assembly | Not Available |
| Maximum Operating Temperature | Not Available |
| Heated/Not Heated | Heated |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
