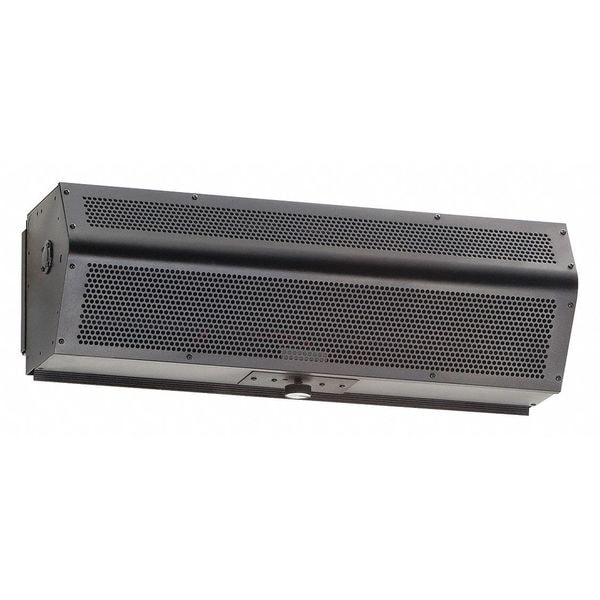

LoPro Series 2 Air Curtain 36IN
| Item | Unhtd 8"H 36"W 9"D Steel Air Curtain |
|---|---|
| Phase | 1 |
| Number of Motors | 1 |
| Housing Color | Black |
| Overall Depth | 9 in |
| Standards | CSA 22.2, ETL Listed, UL 507 |
| Number of Speeds | Variable |
| Overall Width | 36 in |
| Overall Height | 8 in |
| Control Type | Limit Switch |
| Finish | Galvanized, Powder Coated |
| Housing Material | Steel |
| Motor Horsepower per Motor | 0.1667 HP |
| Maximum Air Volume | 900 cfm |
| Sound Level @ 10 ft | 49 dBA |
| Air Temperature Rise | Not Applicable |
| Mounting Height for Temperature Control | 8 ft |
| HEPA Air Cleaning | No |
| Series | LPV2 (LoPro 2) |
| Full Load Current | 0.9 A |
| Heated/Not Heated | Not Heated |
| Profile Type | Low Profile |
| For Outdoor Use | Yes |
| Sanitation Certified | No |
| Heater Power Consumption | Not Applicable |
| Mounting Height for Insect Control | 7 ft |
| Grille Material | Steel |
| Ultraviolet Air Cleaning | No |
| For Frame Opening Width | 3 ft |
| Frequency | 50 Hz |
| Washdown | No |
| Drive Type | Direct Drive |
| Nozzle Width | 36 in |
| Maximum Air Velocity | 1,800 fpm |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
