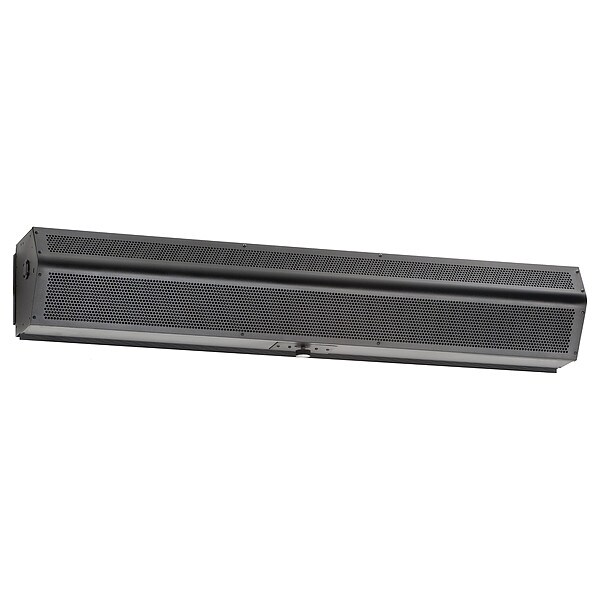

Prison Package Air Curtain, 8 5/8" D
| Item | Prison Package Air Curtain |
|---|---|
| Phase | 1 |
| Number of Motors | 1 |
| Overall Depth | 8-5/8 in |
| Heated/Not Heated | Not Heated |
| Motor Horsepower per Motor | 0.1667 HP |
| Mounting Hole Diameter | 1/4 in |
| Includes | Not Applicable |
| Full Load Current | 2.4 A |
| Motor Type | Continuous-Duty |
| For Outdoor Use | Yes |
| Housing Material | Steel |
| Mounting Height for Temperature Control | 8 ft |
| Number of Speeds | Variable |
| Mounting Height for Insect Control | 7 ft |
| Overall Width | 36 in |
| Finish | Galvanized, Powder Coated |
| Series | LPV2 |
| Electrical Connection | Hardwired |
| Housing Color | Black |
| Maximum Air Velocity | 1,800 fpm |
| Motor Enclosure | Totally Enclosed Air Over |
| Frequency | 60 Hz |
| Maximum Air Volume | 900 cfm |
| Sound Level @ 10 ft | 49 dBA |
| Maximum Speed | 1,550 rpm |
| Control Type | Limit Switch |
| Sanitation Certified | No |
| Nozzle Width | 1-5/8 in |
| Profile Type | Low Profile |
| Assembly | Assembled |
| Standards | CSA, ETL Listed, UL Indoor |
| Overall Height | 8-1/8 in |
| Drive Type | Direct Drive |
| Heater Power Consumption | Not Applicable |
| Nameplate Voltage | 115 V AC |
| Grille Material | Galvanized Steel |
| Air Temperature Rise | Not Applicable |
| For Frame Opening Width | 3 ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
