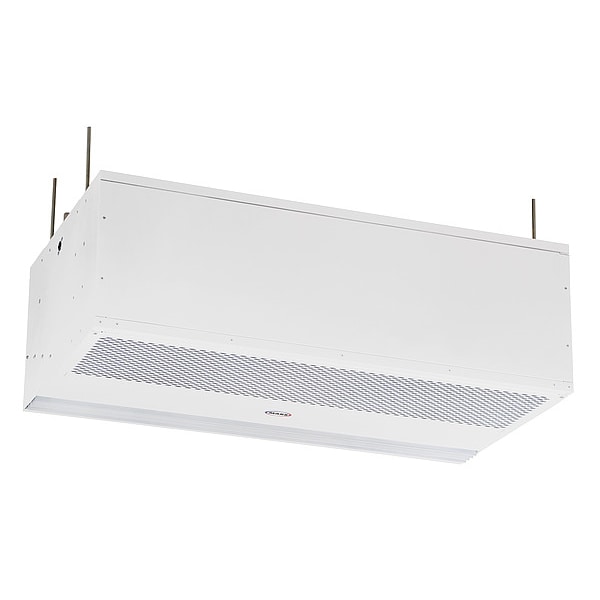

Recessed Air Curtain, 3400 fpm, 26 In. D
| Item | Unhtd 17"H 36"W 26"D Alumin Air Curtain |
|---|---|
| Width | 36-1/8 in |
| Phase | 1 |
| Max. Mounting Height | 10 ft |
| Number of Motors | 1 |
| Height | 16-1/2 in |
| Air Curtain Air Velocity | 3,400 fpm |
| Voltage | 115 V |
| Air Curtain Air Volume | 1,460 cfm |
| Air Curtain Max. Door Width | 3 ft |
| Air Curtain dBA @ 10 Feet | 66 dBA |
| Depth | 26 in |
| Air Curtain Heated | No |
| Air Curtain Housing Material | Aluminum |
| Hz | 60 |
| Includes | Filters |
| Motor HP | 0.5 |
| Motor Enclosure | Totally Enclosed Air Over |
| Housing Color | White |
| Max. Amps | 5.1 |
| Standards | AMCA Certified |
| Requires | Door Limit Switch |
| Max. RPM | 1,750 |
| Motor Type | Permanent Split Capacitor |
| Number of Speeds | 1 |
| Air Curtain Item | Recessed Air Curtain |
| Control Type | Door Limit Switch |
| Overall Height | 17 in |
| Overall Depth | 26 in |
| Overall Width | 36 in |
| Finish | Powder Coated |
| Housing Material | Aluminum |
| Nameplate Voltage | 115 V AC |
| Nozzle Width | 36 in |
| Includes Mounting Fasteners | Not Available |
| Maximum Speed | 1,750 rpm |
| Grille Material | Aluminum |
| Series | PH10 |
| Mounting Height for Temperature Control | 12 ft |
| Profile Type | Recessed |
| Maximum Operating Temperature | Not Available |
| Full Load Current | 5.1 A |
| Maximum Air Volume | 1,460 cfm |
| Power Consumption | 460 W |
| Heated/Not Heated | Not Heated |
| Motor Horsepower per Motor | 0.5 HP |
| Washdown | No |
| Mounting Height for Insect Control | 10 ft |
| Ultraviolet Air Cleaning | No |
| Drive Type | Direct Drive |
| HEPA Air Cleaning | No |
| Mounting Hole Diameter | Not Available |
| Power Cord Length | Not Available |
| Sound Level @ 10 ft | 66 dBA |
| Minimum Operating Temperature | Not Available |
| Maximum Air Velocity | 3,950 fpm |
| Sanitation Certified | No |
| Assembly | Not Available |
| For Frame Opening Width | 3 ft |
| Frequency | 60 Hz |
| Electrical Connection | Not Available |
| Heater Power Consumption | Not Applicable |
| Air Temperature Rise | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
