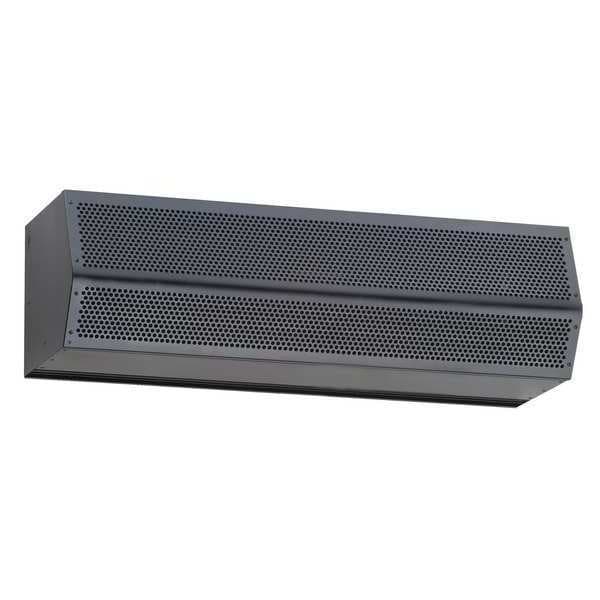

Standard Series 2 Air Curtain 48IN
| Item | Unhtd 10.7"H 48"W 13"D Steel Air Curtain |
|---|---|
| Width | 48 in |
| Phase | 3 |
| Max. Mounting Height | 10 ft |
| Number of Motors | 1 |
| Height | 10-5/8 in |
| Voltage | 460 V |
| Depth | 12-3/4 in |
| Hz | 60 |
| Motor Enclosure | Totally Enclosed Air Over |
| Standards | CSA 22.2, ETL Listed, UL 507 |
| Motor HP | 0.5 |
| Requires | Door Limit Switch, Motor Control Panel |
| Max. Amps | 0.8 |
| Housing Color | Black |
| Number of Speeds | 1 |
| Motor Type | 3 Phase |
| Max. RPM | 1,750 |
| Overall Width | 48 in |
| Overall Depth | 13 in |
| Control Type | Limit Switch |
| Overall Height | 10-5/8 in |
| Finish | Galvanized, Powder Coated |
| Housing Material | Steel |
| Maximum Air Volume | 1,442 cfm |
| For Outdoor Use | Yes |
| Drive Type | Direct Drive |
| For Frame Opening Width | 4 ft |
| Sound Level @ 10 ft | 66 dBA |
| Heater Power Consumption | Not Applicable |
| Mounting Height for Insect Control | 10 ft |
| Power Consumption | 550 W |
| Grille Material | Steel |
| Frequency | 60 Hz |
| Maximum Air Velocity | 1,730 fpm |
| Washdown | No |
| Nameplate Voltage | 460 V AC |
| Nozzle Width | 48 in |
| Heated/Not Heated | Not Heated |
| Full Load Current | 0.8 A |
| Profile Type | Standard Profile |
| Maximum Speed | 1,750 rpm |
| Series | STD2 (Standard 2) |
| Sanitation Certified | No |
| Ultraviolet Air Cleaning | No |
| HEPA Air Cleaning | No |
| Motor Horsepower per Motor | 0.5 HP |
| Air Temperature Rise | Not Applicable |
| Mounting Height for Temperature Control | 12 ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
