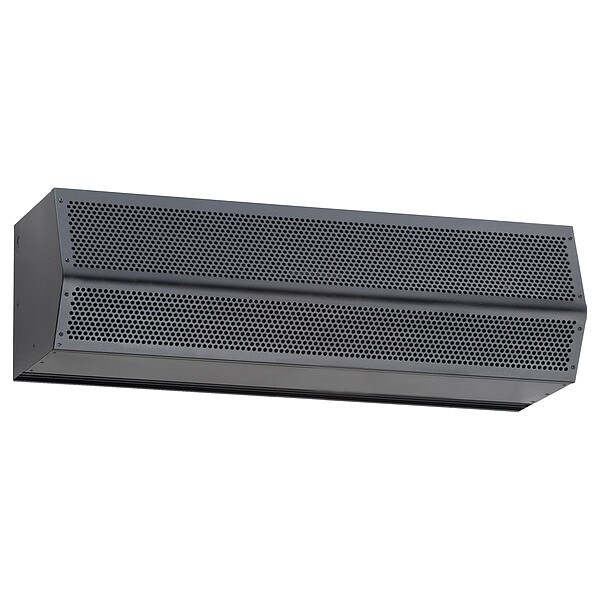

Washdown Air Curtain, 10 5/8" H, 48" W
| Item | Washdown Air Curtain |
|---|---|
| Phase | 1 |
| Number of Motors | 1 |
| Finish | Galvanized, Powder Coated |
| Sanitation Certified | No |
| Standards | CSA, ETL Listed, UL Indoor, UL Outdoor |
| Overall Depth | 12-3/4 in |
| Washdown | Yes |
| Maximum Air Velocity | 1,730 fpm |
| Motor Horsepower per Motor | 0.5 HP |
| Overall Width | 48 in |
| Nozzle Width | 2-1/2 in |
| Mounting Height for Temperature Control | 12 ft |
| Maximum Speed | 1,725 rpm |
| Assembly | Assembled |
| Electrical Connection | Hardwired |
| Motor Enclosure | Totally Enclosed |
| Control Type | Limit Switch |
| Series | STD2 |
| Includes | Not Applicable |
| Housing Material | Steel |
| Number of Speeds | 1 |
| Mounting Hole Diameter | 1/2 in |
| Sound Level @ 10 ft | 66 dBA |
| Housing Color | Black |
| Overall Height | 10-5/8 in |
| Frequency | 60 Hz |
| HEPA Air Cleaning | No |
| Ultraviolet Air Cleaning | No |
| Power Consumption | 550 W |
| Drive Type | Direct Drive |
| Heated/Not Heated | Not Heated |
| Mounting Height for Insect Control | 10 ft |
| For Outdoor Use | Yes |
| Motor IP Rating | IP54 |
| Profile Type | Standard Profile |
| Full Load Current | 5.1 A |
| Maximum Air Volume | 1,442 cfm |
| Grille Material | Galvanized Steel |
| Nameplate Voltage | 115 V AC |
| For Frame Opening Width | 4 ft |
| Heater Power Consumption | Not Applicable |
| Air Temperature Rise | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
