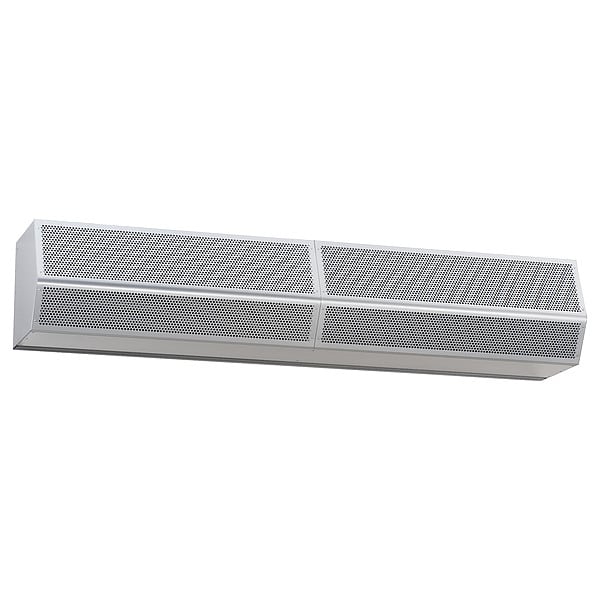

Washdown Air Curtain, 14" H, 108" W
| Item | Washdown Air Curtain |
|---|---|
| Phase | 3 |
| Number of Motors | 3 |
| Includes | Not Applicable |
| Drive Type | Direct Drive |
| Motor Enclosure | Totally Enclosed |
| Sanitation Certified | No |
| Motor IP Rating | IP54 |
| Electrical Connection | Hardwired |
| Standards | CSA, ETL Listed, UL Indoor, UL Outdoor |
| Mounting Height for Insect Control | 12 ft |
| Motor Horsepower per Motor | 1 HP |
| Number of Speeds | 1 |
| Assembly | Assembled |
| Housing Material | Steel |
| Nozzle Width | 3 in |
| Mounting Hole Diameter | 1/2 in |
| Finish | Galvanized, Powder Coated |
| Control Type | Limit Switch |
| Mounting Height for Temperature Control | 14 ft |
| Series | HV2 |
| For Outdoor Use | Yes |
| Power Consumption | 3,735 W |
| Washdown | Yes |
| Overall Depth | 15-1/2 in |
| Maximum Air Velocity | 2,745 fpm |
| Overall Width | 108 in |
| Overall Height | 14 in |
| Housing Color | Silver |
| Sound Level @ 10 ft | 75 dBA |
| Frequency | 60 Hz |
| Maximum Speed | 1,725 rpm |
| Full Load Current | 4.8 A |
| Profile Type | Standard Profile |
| Heated/Not Heated | Not Heated |
| Maximum Air Volume | 6,177 cfm |
| Air Temperature Rise | Not Applicable |
| Heater Power Consumption | Not Applicable |
| For Frame Opening Width | 9 ft |
| Grille Material | Galvanized Steel |
| Nameplate Voltage | 460 V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
