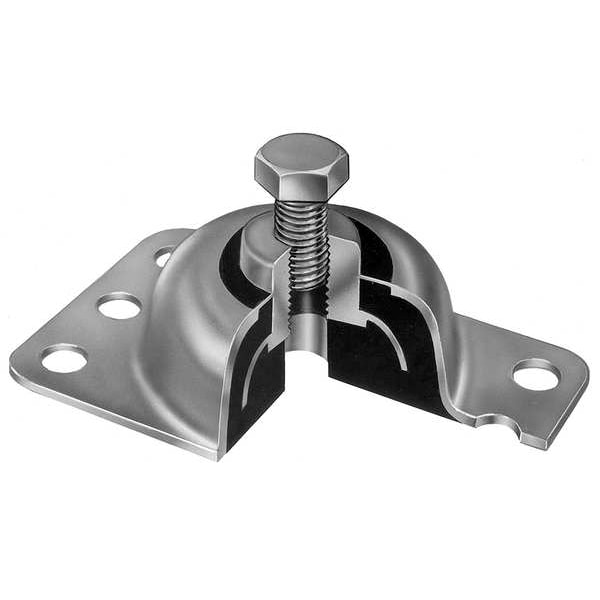

Floor Mount Vibration Isolator, 2100 lb.
| Item | Floor-Mount Vibration Isolator |
|---|---|
| Isolator Type | Neoprene |
| Capacity Range | 0 to 2,100 lb |
| Deflection | 0 to 0.15 in |
| Height | 2-3/4 in |
| Width | 6-1/4 in |
| Color Mark | Red |
| Spring Color | Not Applicable |
| Max. Load Shear | 600 |

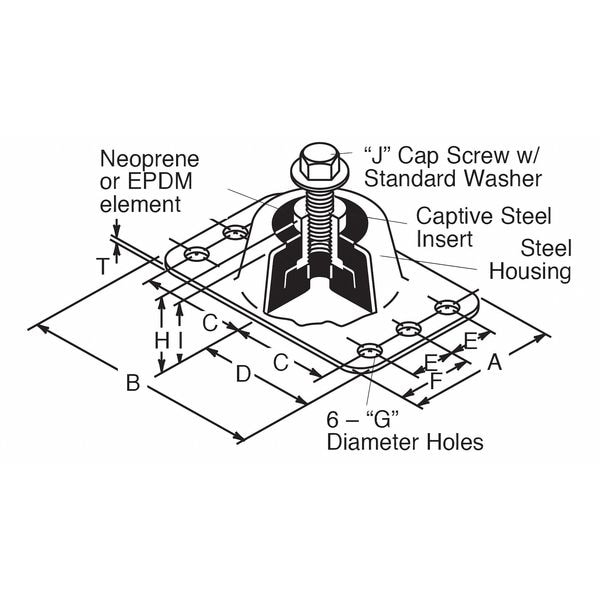

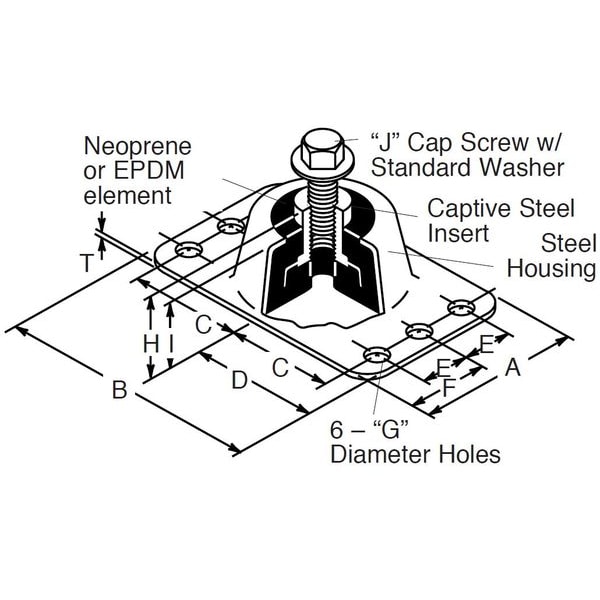

| Dimension H | 1-7/8 in |
| Dimension A | 3-3/4 in |
| Dimension T | 3/32 in |
| Dimension I | 1 1/2 in |
| Dimension E | 1-1/4 in |
| Dimension B | 6-1/4 in |
| Dimension F | 1-7/8 in |
| Dimension G | 9/16 in |
| Dimension D | 3-1/8 in |
| Dimension J | 5/8-11UNC x 1 1/4" |
| Dimension C | 2-1/2 in |
| Rated Deflection - Maximum | 0.15 in |
| Overall Height | 2-3/4 in |
| Overall Width | 6-1/4 in |
| Rated Capacity - Minimum | 0 lb |
| Overall Depth | 3-3/4 in |
| Rated Capacity - Maximum | 2,100 lb |
| Load Sideways Shear - Maximum | 600 lbf |
| Center-to-Center Mounting Hole Distance | 1-1/4 in |
| Rated Deflection - Minimum | 0 in |
| Isolator Material | Neoprene |
| Package Quantity | 1 |
