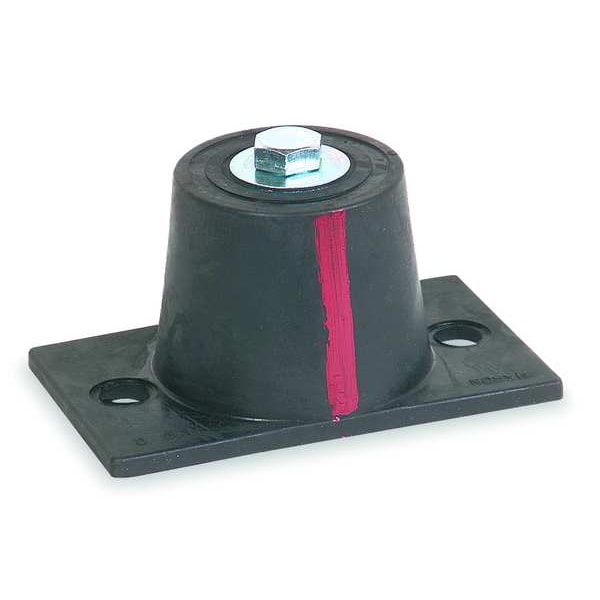

Floor Mount Vibration Isolator, Neoprene
| Item | Floor-Mount Vibration Isolator |
|---|---|
| Isolator Type | Neoprene |
| Capacity Range | 125 to 250 lb |
| Deflection | 1/4 to 1/2 in |
| Height | 1-7/8 in |
| Width | 2-5/16 in |
| Color Mark | Red |
| Spring Color | Not Applicable |

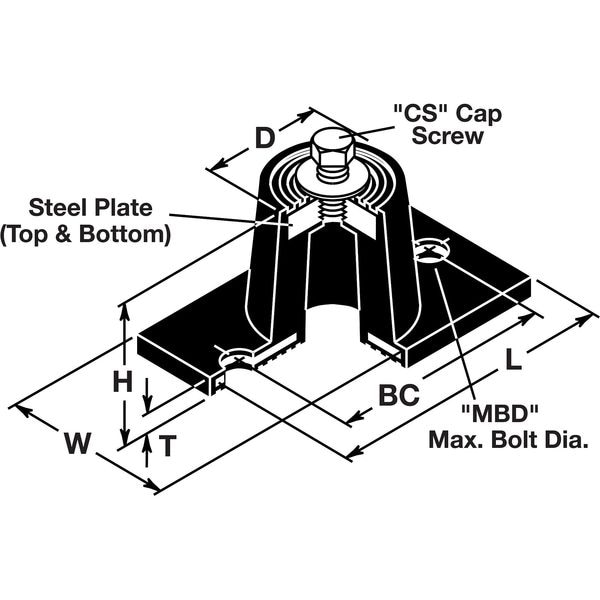

| Dimension BC | 3 in |
| Dimension D | 1-3/4 in |
| Dimension L | 3-7/8 in |
| Bolt Size | 5/16 in |
| Cap Screw Dia. and Length | 3/8 in x 1 in |
| Dimension T | 1/4 in |
| Includes | Top Bolts and Washers |
| Dimension MBD | 5/16 in |
| Dimension H | 1-7/8 in |
| Center-to-Center Mounting Hole Distance | 3 in |
| Overall Width | 2-5/16 in |
| Rated Deflection - Maximum | 1/2 in |
| Overall Height | 1-7/8 in |
| Isolator Material | Neoprene |
| Rated Capacity - Maximum | 250 lb |
| Overall Depth | 3-7/8 in |
| Rated Deflection - Minimum | 1/4 in |
| Screw Size | 3/8 in |
| Rated Capacity - Minimum | 125 lb |
| Package Quantity | 1 |
