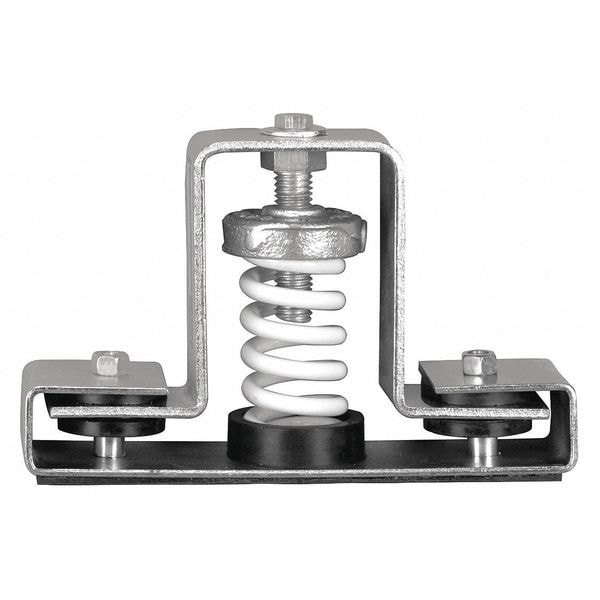

Flr Mnt Seismic and Wind Vibration Isltr
| Item | Floor-Mount Vibration Isolator |
|---|---|
| Isolator Type | Spring |
| Capacity Range | 380 to 510 lb |
| Deflection | 3/4 to 1 in |
| Height | 5-1/8 in |
| Width | 2-1/2 in |
| Color Mark | Not Applicable |
| Spring Color | Red |

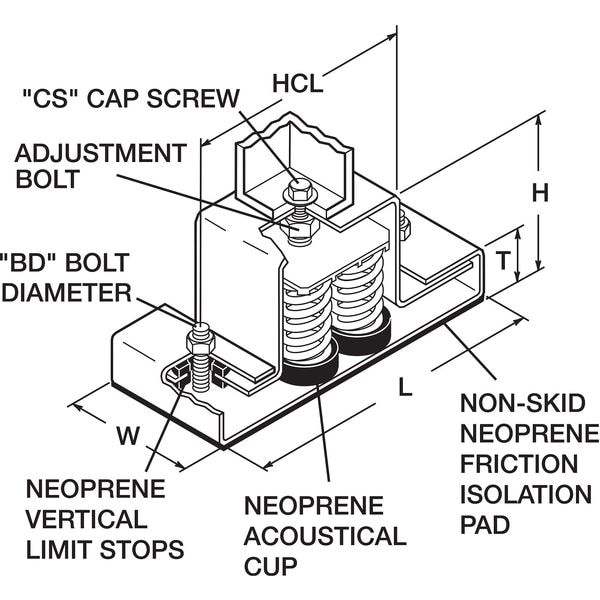

| Dimension L | 8-3/4 in |
| Dimension BD | 3/8 in |
| Dimension CS | 3/8 x 1 in |
| Dimension H | 5-1/8 in |
| Dimension HCL | 6 in |
| Dimension T | 1-5/8 in |
| Center-to-Center Mounting Hole Distance | 6 in |
| Includes Spring | Spring Included |
| Rated Deflection - Maximum | 1 in |
| Isolator Material | Spring |
| Rated Capacity - Minimum | 380 lb |
| Overall Height | 5-1/8 in |
| Rated Deflection - Minimum | 3/4 in |
| Overall Depth | 8-3/4 in |
| Overall Width | 2-1/2 in |
| Rated Capacity - Maximum | 510 lb |
| Package Quantity | 1 |
