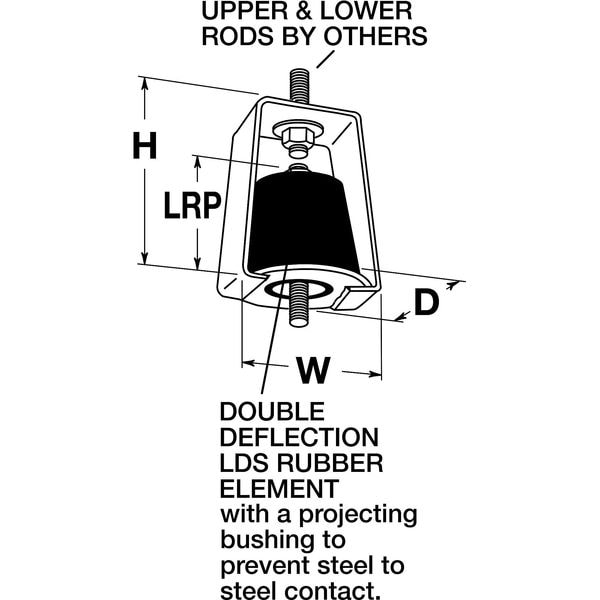

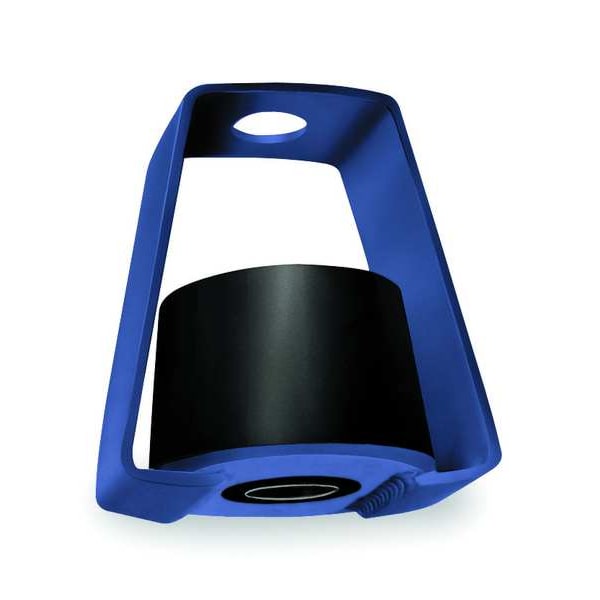

Vibration Isolator, Neoprene, 0 to 35 lb.
| Item | Hanger-Mount Vibration Isolator |
|---|---|
| Isolator Type | Neoprene |
| Capacity Range | 0 to 35 lb |
| Deflection Range | 0.1 to 0.2 in |
| Max. Rod Dia. | 3/8 in |
| Lower Rod Penetration | 1-1/4 in |
| Color Mark | Green |
| Spring Color | Not Applicable |
| Depth | 1-3/4 in |
| Width | 1-7/8 in |
| Height | 2-1/4 in |
| Bushing Type | Rubber |
| Isolator Material | Neoprene |
| Overall Height | 2-1/4 in |
| Rated Deflection - Maximum | 0.2 in |
| Bushing Material | Rubber |
| Rated Deflection - Minimum | 0.1 in |
| Includes Spring | Spring Included |
| Rated Capacity - Maximum | 35 lb |
| Overall Depth | 1-3/4 in |
| Overall Width | 1-7/8 in |
| Rod Diameter - Maximum | 3/8 in |
| Package Quantity | 1 |
