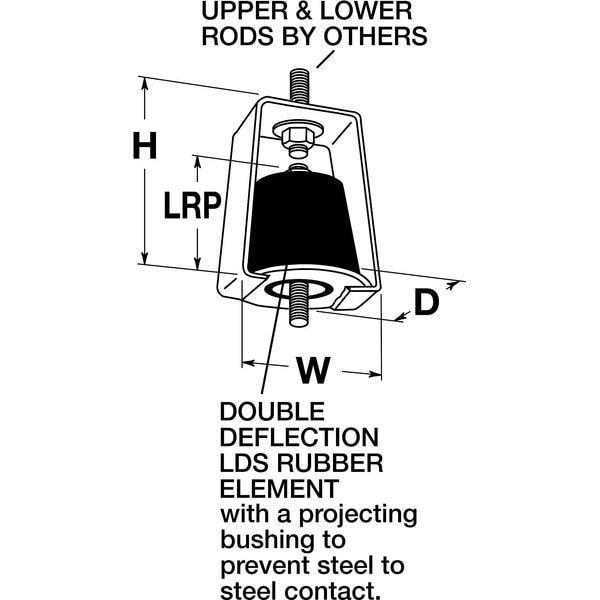

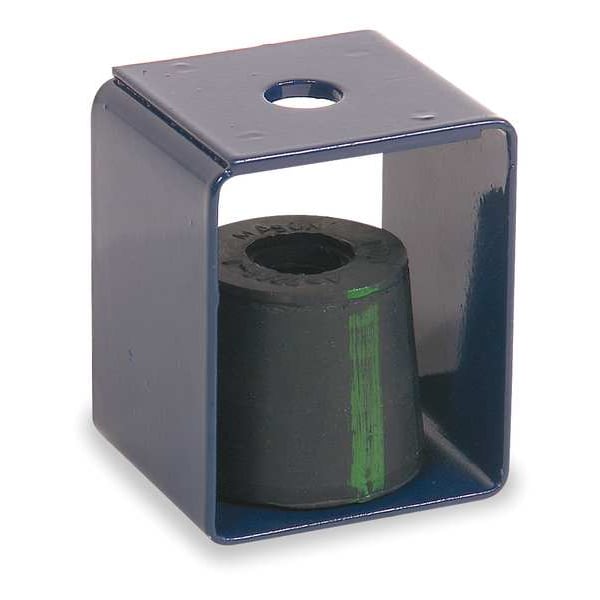

Vibration Isolator, Neoprene, 40 to 75 lb.
| Item | Hanger-Mount Vibration Isolator |
|---|---|
| Isolator Type | Neoprene |
| Capacity Range | 40 to 75 lb |
| Deflection Range | 0.18 to 0.35 in |
| Max. Rod Dia. | 1/2 in |
| Lower Rod Penetration | 2-1/4 in |
| Height | 2-3/4 in |
| Color Mark | Green |
| Spring Color | Not Applicable |
| Width | 2-1/4 in |
| Depth | 2 in |
| Bushing Type | Rubber |
| Overall Height | 2-3/4 in |
| Rod Diameter - Maximum | 1/2 in |
| Isolator Material | Neoprene |
| Rated Capacity - Maximum | 75 lb |
| Rated Capacity - Minimum | 40 lb |
| Overall Depth | 2 in |
| Rated Deflection - Maximum | 0.35 in |
| Overall Width | 2-1/4 in |
| Rated Deflection - Minimum | 0.18 in |
| Bushing Material | Rubber |
| Includes Spring | Spring Included |
| Package Quantity | 1 |
