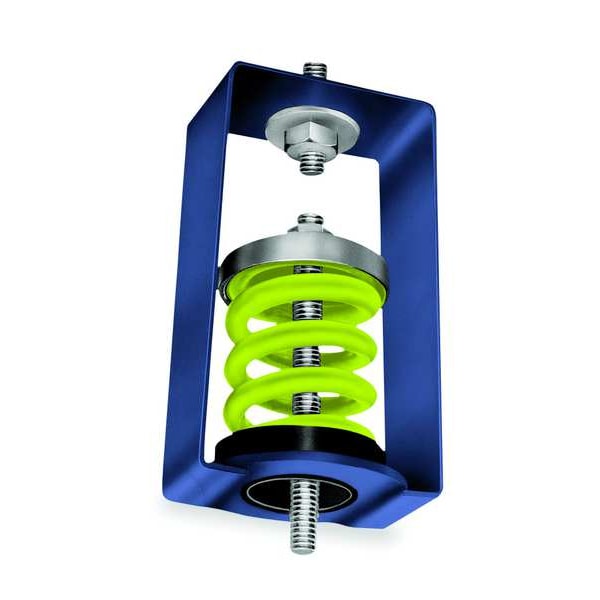

Vibration Isolator, Spring, 750 to 1000lb.
| Item | Hanger-Mount Vibration Isolator |
|---|---|
| Isolator Type | Spring |
| Capacity Range | 750 to 1,000 lb |

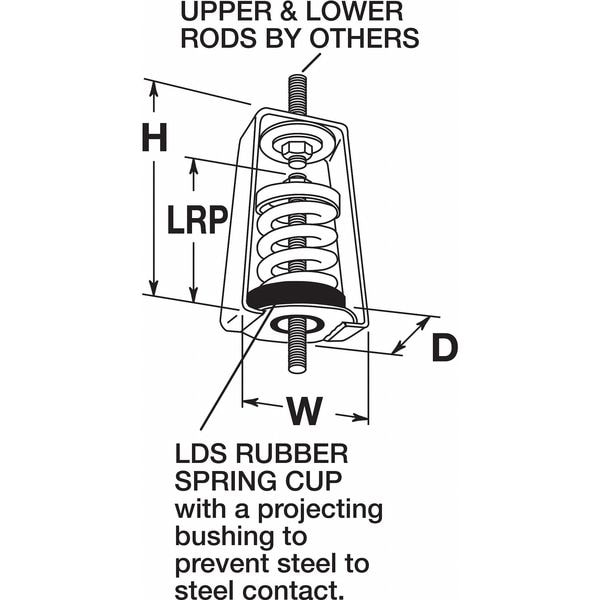

| Deflection Range | 3/4 to 1 in |
| Max. Rod Dia. | 3/4 in |
| Lower Rod Penetration | 4-1/4 in |
| Bushing Type | Rubber |
| Height | 7-1/4 in |
| Width | 4-3/4 in |
| Depth | 4 in |
| Spring Color | Blue |
| Color Mark | Not Applicable |
| Overall Height | 7-1/4 in |
| Rod Diameter - Maximum | 3/4 in |
| Rated Capacity - Maximum | 1,000 lb |
| Isolator Material | Spring |
| Overall Depth | 4 in |
| Bushing Material | Rubber |
| Includes Spring | Spring Included |
| Rated Deflection - Minimum | 3/4 in |
| Overall Width | 4-3/4 in |
| Rated Deflection - Maximum | 1 in |
| Rated Capacity - Minimum | 750 lb |
| Package Quantity | 1 |
