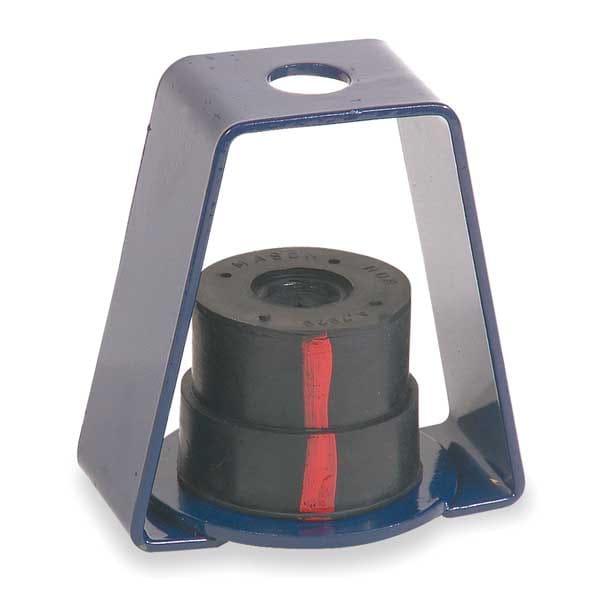

Vibration Isoltr, Neoprene, 115 to 235 lb.
| Item | Hanger-Mount Vibration Isolator |
|---|---|
| Isolator Type | Neoprene |
| Capacity Range | 115 to 235 lb |
| Deflection Range | 0.24 to 0.4 in |
| Max. Rod Dia. | 3/4 in |
| Lower Rod Penetration | 3 in |
| Bushing Type | Rubber |
| Color Mark | Red |
| Depth | 3-1/4 in |
| Spring Color | Not Applicable |
| Height | 4-1/2 in |
| Width | 4-1/4 in |
| Isolator Material | Neoprene |
| Overall Depth | 3-1/4 in |
| Bushing Material | Rubber |
| Overall Width | 4-1/4 in |
| Rated Deflection - Maximum | 0.4 in |
| Rated Capacity - Minimum | 115 lb |
| Rated Capacity - Maximum | 235 lb |
| Rated Deflection - Minimum | 0.24 in |
| Includes Spring | Spring Included |
| Rod Diameter - Maximum | 3/4 in |
| Overall Height | 4-1/2 in |
| Package Quantity | 1 |
