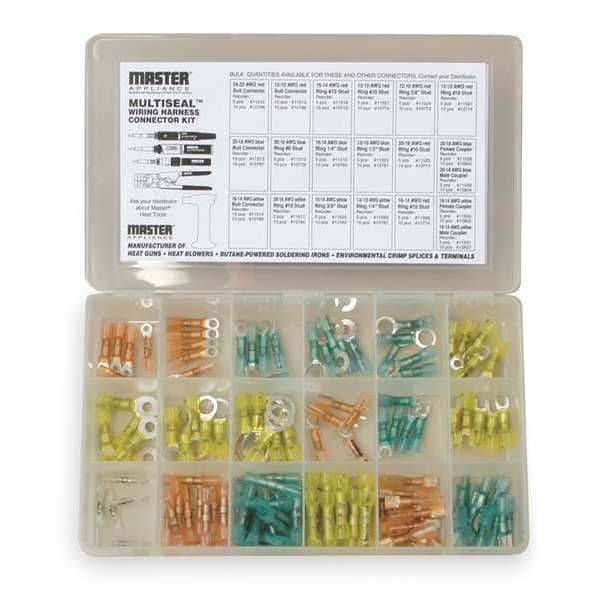

Kit de 120 piezas para la terminación de cables de 24-10 AWG.
| Wire Range | 24 to 10 AWG |
|---|---|
| Insulation Color | Assortment |
| Terminal Type | Fork Terminals, Ring, Connectors, Male Disconnects, Female Quick Disconnects |
| Number of Pieces | 120 |
| Kit Type | Connector |
| Sizes Included | 10 to 12 AWG, 14 to 16 AWG, 18 to 20 AWG, 22 to 24 AWG |
| Includes | (1) Plastic Case, (10) Red, (10) Yellow Butt Connectors, (15) Blue, (5) Blue #10, (5) Blue #10 Stud, (5) Blue 1/4 in Stud, (5) Blue 3/8 in Stud, (5) Clear, (5) Red #10, (5) Red #10 Stud, (5) Red #6 Stud, (5) Red 1/4 Tab and (5) Blue 1/4 Tab Female Couplers, (5) Red 1/4 Tab and (5) Blue 1/4 Tab Male Couplers, (5) Yellow #10 in Stud, (5) Yellow #10 Spade Terminals, (5) Yellow 1/2 in Stud Ring Terminals, (5) Yellow 1/4 in Stud, (5) Yellow 3/8 in Stud |
| Connector Assortment Type | Crimp Terminals |
| Item | Wire Termination Kit 120 Piece |
| Number of Sizes | 4 |
| Standards | CSA, UL |
| RoHS Compliant | Yes |
| Wire Sizes Included | 10 to 12 AWG, 14 to 16 AWG, 18 to 20 AWG, 22 to 24 AWG |
| For Conductor Material | Copper, Aluminum |
| Maximum Operating Temperature | 230 deg F |
| Color | Red, Blue, Yellow, Clear |
| Maximum Voltage | 600 V |
| Manufacture Model Numbers Included | 11546, 11547, 11548, 11850, 11851, 11852, 11853, 11854, 11855, 11856, 11857, 11858, 11859, 11860, 11861, 11862, 11866, 11867, 11868, 11869 |
| Maximum Wire Size | 10 AWG |
| Insulation Material | Polyolefin |
| Tools Included | None |
| Compatible with Series | Multiseal(TM) |
| Termination Style | Crimp |
| Minimum Wire Size | 24 AWG |
| Package Quantity | 1 |
