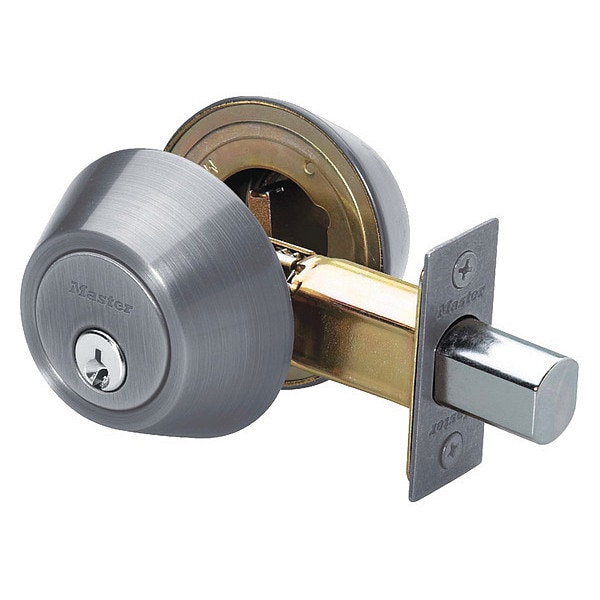

Deadbolt, Satin Nickel, Double Cylinder
| Mortise / Cylindrical | Cylindrical |
|---|---|
| Location Type | Commercial |
| Lockset Grade | 3 |
| For Door Thickness | 1-3/8 to 1-3/4 in |
| Lockset Finish | Satin Nickel |
| Keyway Type | SC1 |
| Key Type | Keyed Alike |
| Standards | ANSI Grade 3 |
| ADA Compliant | No |
| Backset | 2-3/8 in |
| Pins | 6 |
| Cylinder | Double |
| Includes | (2) Keys |
| Throw Length | 1 in |
| Lockset Fire Rating | Not Rated |
| Faceplate Dimensions | 1-1/8 in x 2-1/4 in |
| For Use With | Entry Doors |
| Strike Dim. | 2-1/4 in x 1-3/4 in |
| Application | Residential |
| Number of Keys | 2 |
| Mortise/Cylindrical | Cylindrical |
| Strike | Round and Square Corner |
| Item | Deadbolt Lock |
| Security Type | Medium-Duty |
| Ligature Resistant | No |
| Material | Steel |
| Number of Pins | 6 |
| ANSI Grade | 3 |
| Locking/Unlocking Access - Outside | Keyway |
| Locking/Unlocking Access - Inside | Keyway |
| Faceplate Height | 2-1/4 in |
| Strike Plate Height | 2-1/4 in |
| Strike Plate Width | 1-3/4 in |
| ANSI/BHMA Finish | Satin Nickel-Plated, Clear Coated |
| Door Thickness - Minimum | 1-3/4 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Faceplate Width | 1-1/8 in |
| Fire Rating | Not Applicable |
| Door Thickness - Maximum | 1-3/8 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
