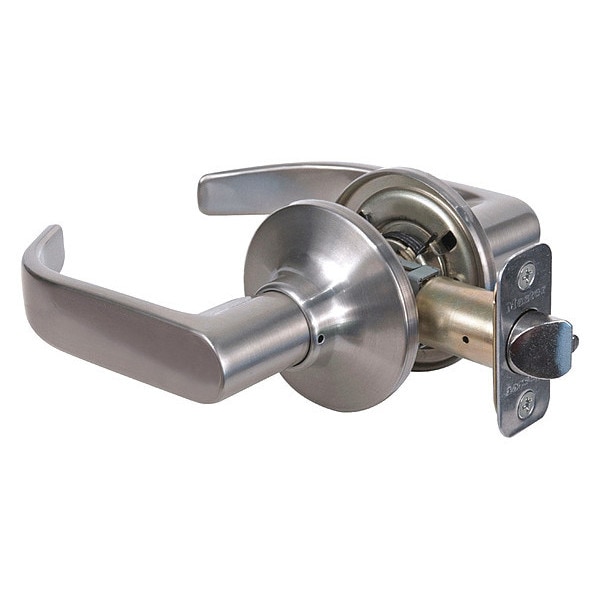

Lever Lockset, Satin Nickel, Return Style
| Backset | 2 3/8 in |
|---|---|
| Electrical/Mechanical | Mechanical |
| For Use With | Interior Doors |
| Includes | (2) Keys |
| Key Type | Not Keyed |
| Keyway Type | None |
| Location Type | Commercial |
| Lockset Function | Passage |
| Lockset Grade | 3 |
| Lockset Handle Type | Lever |
| Mortise/Cylindrical | Cylindrical |
| Number of Pins | 0 |
| Required Door Thickness | 1-3/8 in to 1-3/4 in |
| Style | Return |
| ADA Compliant | No |
| Ligature Resistant | No |
| Mortise / Cylindrical | Cylindrical |
| Lockset Finish | Satin Nickel |
| Voltage | Not Applicable |
| Handle Material | Steel |
| Lockset Performance Strength | Medium Duty |
| Lockset Fire Rating | Not Rated |
| Standards | ANSI |
| Strike Type | Round Corner, Square Corner |
| Features | For Interior Non-Locking Applications, Six Way Adjustable Latch |
| Strike Dim. | 1-5/8 in x 2-1/4 in |
| Cylinder Core Type | Conventional Core Cylinder |
| Item | Door Lockset |
| Number of Keys | 0 |
| Key Material | Not Applicable |
| Application | Residential |
| Visual Indicator Message | No Message |
| Locking/Unlocking Access - Outside | Not Lockable |
| Visual Indicator Location | Not Applicable |
| Lockset Type | Mechanical |
| Hand Orientation | Non-Handed |
| Door Thickness - Minimum | 1-3/8 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Knob/Handle Material | Steel |
| Door Thickness - Maximum | 1-3/4 in |
| Fire Rating | Not Rated |
| Strike Plate Height | 2-1/4 in |
| Performance Grade | 2 |
| ANSI Grade | 3 |
| Locking/Unlocking Access - Inside | Not Lockable |
| Strike Plate Width | 1-5/8 in |
| ANSI/BHMA Finish | Satin Nickel-Plated, Clear Coated |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
