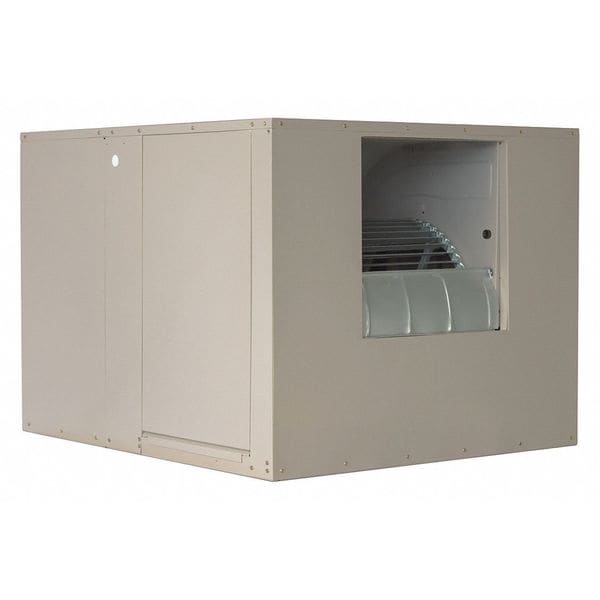

Ducted Evaporative Cooler 7,000 cfm, 2300 sq. ft., 5 gal, 1 HP, Belt Drive, 20" Blade Dia.
| Air Flow | 7,000 cfm |
|---|---|
| Voltage | 115 |
| Motor HP | 1 |
| Material | Bolted, Galvanized Steel |
| Width | 42 in |
| Fill Type | Water Connection Required |
| Pad Thickness | 8 in |
| Color | Beige |
| Water Capacity | 5 gal |
| Water Connection | 1/4 in |
| Media | Celdek Rigid Media |
| Evaporative Cooler Voltage | 115V AC |
| Amps | 17.1 |
| Speed | 2 |
| Duct Opening Width | 19-3/4 in |
| Duct Opening Length | 19-3/4 in |
| Height | 34-5/8 in |
| Operating Weight | 269 lb |
| Blade Dia. | 20 in |
| Item | Ducted Evaporative Cooler |
| Includes | Bleed Off, Float, Junction Box, Pulley, Pump |
| Evaporative Cooler Cooling Capacity | 2,300 sq ft |
| Pump Voltage | 115V AC |
| Finish | Powder Coated |
| Drive | With |
| Discharge | Side |
| Drive Type | Belt Drive |
| Evaporative Cooler Item | Ducted Evaporative Cooler with Motor |
| Depth | 48 in |
| Phase | Single |
| Drive Package With Motor | Factory Installed |
| Number of Inlets for Outside Air | Single Inlet |
| Number of Speeds | 2 |
| HP | 1 HP |
| Duty Rating | Residential Grade |
| Cooling Capacity | 2,300 sq ft |
| Airflow | 7,000 cfm |
| Connection Type | NPS |
| Coverage Area - Maximum | 2,300 sq ft |
| Coverage Area - Minimum | Not Applicable |
| Includes Drive Package | Drive Package Included |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
