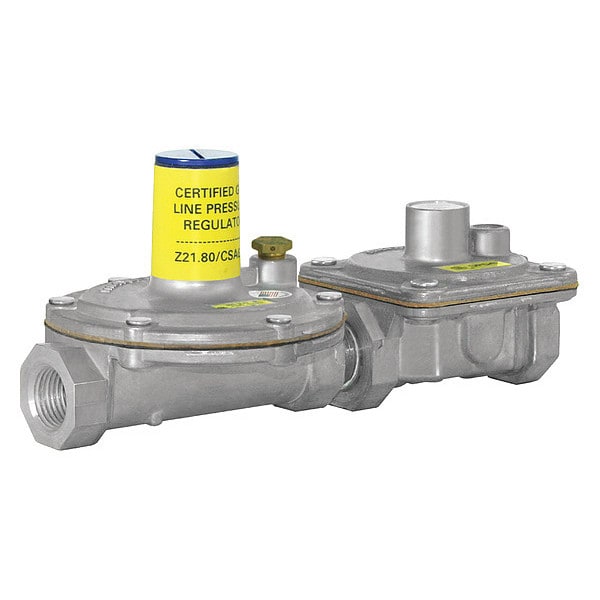

Gas Pressure Regulator, Natural Gas, -40 Degrees to 205 Degrees F
| BtuH Capacity | 200000 |
|---|---|
| Gas Type | Liquid Propane, Natural Gas |
| Ambient Temp. Range | -40 to 205 deg F |
| Item | Gas Pressure Regulator |
| Capacity | 200,000 BtuH |
| Outlet Pressure Range | 7 to 11 in |
| Pipe Size | 1/2 in |
| Venting | No Limiter |
| Regulator Type | Lever-Acting Gas |
| Mounting Position | Multipoise |
| Connection Type | NPT |
| Max. Load | 200,000 BtuH |
| Inlet Emergency Exposure Limits | 65 psi |
| Standards | CE, CSA |
| Body Material | Aluminum |
| Max. Inlet Pressure | 5 psi |
| Inlet Connection Type | NPT |
| For Media | Fuel Gases |
| Inlet Connection Size | 1/2 in |
| Mounting Orientation | Horizontal, Vertical |
| Outlet Connection Size | 1/2 in |
| Operating Pressure - Maximum Outlet | 11 in wc |
| Application | Commercial, Industrial, Residential |
| Operating Pressure - Maximum Inlet | 5 psi |
| Gas Capacity | 322,000 BtuH |
| Inlet Emergency Exposure Limit - Maximum | 65 psi |
| Operating Pressure - Minimum Inlet | Not Applicable |
| Outlet Connection Type | NPT |
| Operating Pressure Differential - Maximum | Not Applicable |
| Operating Temperature - Minimum | -40 deg F |
| Operating Pressure - Minimum Outlet | 7 in wc |
| Operating Temperature - Maximum | 205 deg F |
| Operating Pressure Differential - Minimum | Not Applicable |
| Vent Type | Vent Limiter |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
