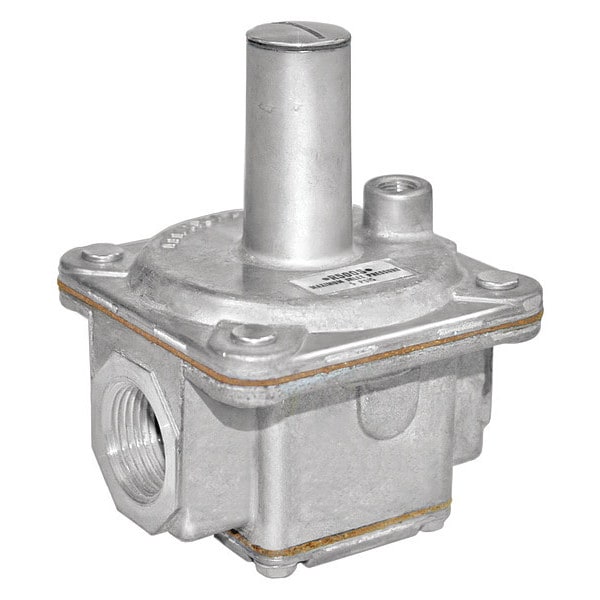

Gas Pressure Regulator, Natural Gas, -40 Degrees to 205 Degrees F
| BtuH Capacity | 600000 |
|---|---|
| Gas Type | Liquid Propane, Natural Gas |
| Ambient Temp. Range | -40 to 205 deg F |
| Item | Gas Pressure Regulator |
| Mounting Position | Upright |
| Venting | Vent Limiter |
| Pipe Size | 3/4 in |
| Regulator Type | Balanced Valve |
| Body Material | Aluminum |
| Outlet Pressure Range | 3 to 6 in |
| Capacity | 600,000 BtuH |
| Max. Inlet Pressure | 0.5 psi |
| Connection Type | NPT |
| Inlet Emergency Exposure Limits | 12.5 psi |
| Standards | CE, CSA |
| Operating Pressure Differential - Minimum | Not Applicable |
| Inlet Connection Size | 3/4 in |
| Operating Pressure - Minimum Inlet | Not Applicable |
| Mounting Orientation | Horizontal |
| Application | Industrial Heaters and Boilers, Regulator, Residential |
| Inlet Connection Type | NPT |
| Operating Pressure - Minimum Outlet | 3 in wc |
| Operating Temperature - Minimum | -40 deg F |
| Vent Type | Vent Limiter |
| Inlet Emergency Exposure Limit - Maximum | 12.5 psi |
| Operating Temperature - Maximum | 205 deg F |
| Operating Pressure Differential - Maximum | Not Applicable |
| Outlet Connection Type | NPT |
| Operating Pressure - Maximum Outlet | 6 in wc |
| Operating Pressure - Maximum Inlet | 0.5 psi |
| For Media | Fuel Gases |
| Gas Capacity | 966,000 BtuH |
| Outlet Connection Size | 3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
