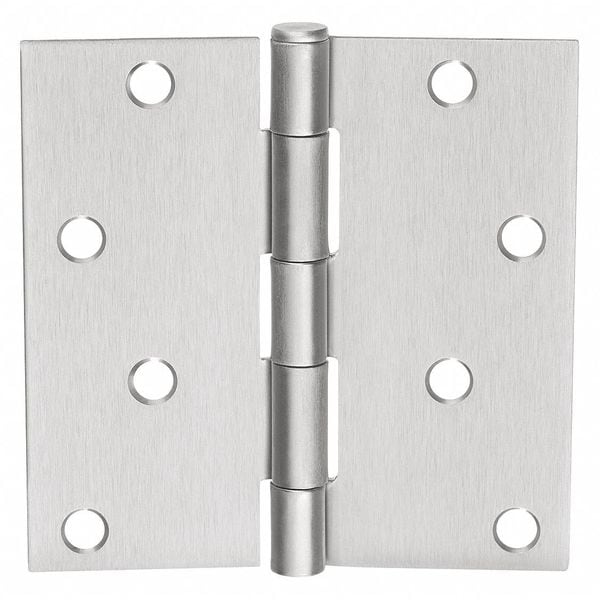

Butt Hinge, Steel, Flush Mounting, 1 7/16 in Leaf W x 3 1/2 in Leaf H, Satin Chrome
| Corners | Square |
|---|---|
| Door Leaf Height | 3-1/2 in |
| Door Leaf Thickness | 0.13 in |
| Door Leaf Width | 3-1/2 in |
| Finish | Satin Chrome |
| Holes per Leaf | 3 |
| Load Capacity | 150 lb |
| Material | Steel |
| Mounting | Flush |
| Pin Dia. | 1/2 in |
| Range of Motion | 270 deg |
| Features | For Flush Door/Frame/Wall Applications, For Low Frequency Doors, Where Doors are Beveled Edge on Hinge Side, Specify T4314 or T4714 |
| Holes | With |
| Standards | ANSI/BHMA 156.7 |
| Frame Leaf Width | 1-7/16 in |
| Height | 3-1/2 in |
| Leaf Thickness | 0.123 in |
| Pin Material | Steel |
| Door Thickness | 1-3/4 in |
| Pin Type | Barrel |
| Width | 3-1/2 in |
| Color | Silver |
| Item | Butt Hinge |
| Ligature Resistant | No |
| Hardware | Yes |
| Frame Leaf Length | 3-1/2 in |
| Door Leaf Length | 3-1/2 in |
| Bearing Type | Plain |
| Frame Leaf Thickness | 0.13 in |
| Overall Width | 3-1/2 in |
| Frame Leaf Height | 3-1/2 in |
| Hinge Number | Not Applicable |
| Hand Orientation | Non-Handed |
| Range of Motion - Maximum | 270 deg |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Thickness - Minimum | 1-3/4 in |
| Number of Holes per Leaf | 3 |
| Mounting Style | Full Mortise |
| Pin Diameter | 9/16 in |
| Includes Hardware | Hardware Included |
| Corner Type | Square |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
