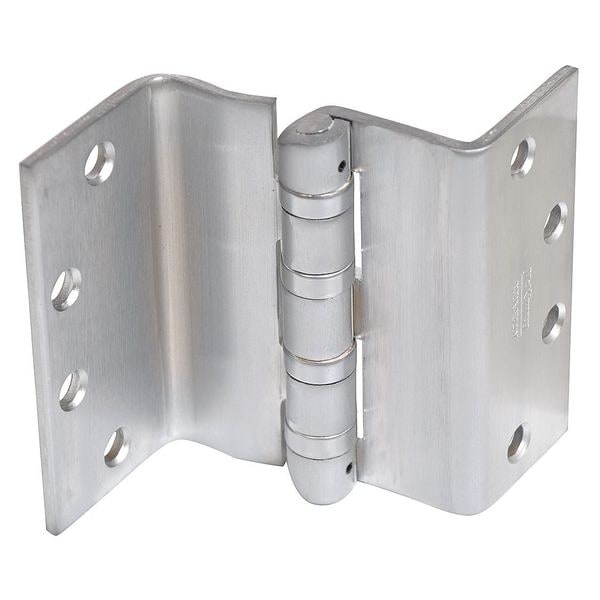

Butt Hinge, Steel, Swing Clear Mounting, 2 3/16 in Leaf W x 5 in Leaf H, Satin Chromium
| Corners | Square |
|---|---|
| Door Leaf Height | 5 in |
| Door Leaf Thickness | 0.19 in |
| Door Leaf Width | 2-1/8 in |
| Finish | Satin Chromium |
| Holes per Leaf | 4 |
| Load Capacity | 250 lb |
| Material | Steel |
| Mounting | Swing Clear |
| Orientation | Non Handed |
| Pin Dia. | 3/4 in |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-3/4 in |
| Features | Reversible Hinges |
| Item | Butt Hinge |
| Pin Material | Steel |
| Ligature Resistant | Yes |
| Bearing Type | Oil Impregnated |
| Frame Leaf Thickness | 0.19 in |
| Holes | With |
| Frame Leaf Height | 5 in |
| Fire Rating - Door Hardware | 3 hr |
| Pin Type | Nonremovable |
| Frame Leaf Width | 2-3/16 in |
| Hardware | Yes |
| Hinge Number | Not Applicable |
| Leaf Thickness | 0.19 in |
| Overall Width | 5 in |
| Standards | ANSI/BHMA A117.1, NFPA 80 |
| Hand Orientation | Non-Handed |
| Door Thickness - Maximum | 1-3/4 in |
| Resistance Properties | Vandal-Resistant |
| Number of Holes per Leaf | 4 |
| Pin Diameter | 3/4 in |
| Range of Motion - Maximum | 180 deg |
| Door Thickness - Minimum | 1-3/4 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Mounting Style | Full Mortise |
| Removable Pin | No |
| Fire Rating | 3 hr |
| Includes Hardware | Hardware Included |
| Corner Type | Square |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
