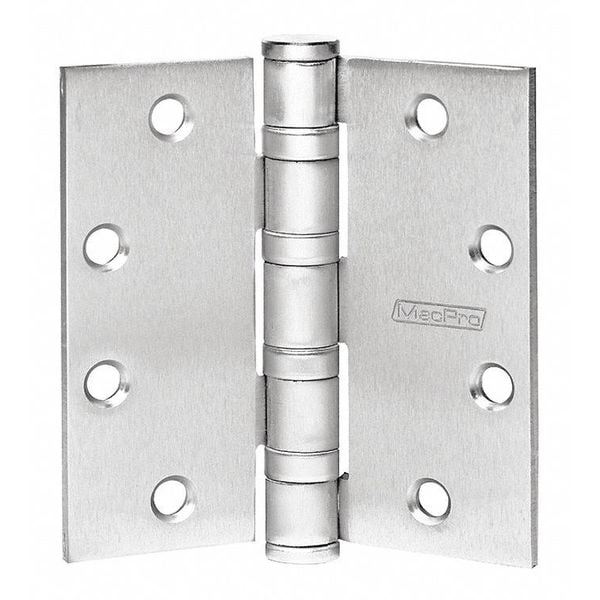

Door and Butt Hinge, Stainless Steel, Full Mortise Mounting, 1 13/16 in Leaf W x 5 in Leaf H
| Corners | Square |
|---|---|
| Door Leaf Height | 5 in |
| Door Leaf Thickness | 0.19 in |
| Door Leaf Width | 4-1/2 in |
| Finish | Satin Stainless Steel |
| Holes per Leaf | 4 |
| Load Capacity | 250 lb |
| Material | Stainless Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Pin Dia. | 3/4 in |
| Range of Motion | 270 deg |
| Required Door Thickness | 1-3/4 in |
| Features | Five Knuckle Heavy Duty Hinge |
| Pin Type | Removable |
| Pin Material | Steel |
| Standards | ANSI/BHMA A156.1, ANSI/BHMA A156.7, NFPA 80 |
| Bearing Type | Ball |
| Frame Leaf Height | 5 in |
| Item | Door and Butt Hinge |
| Frame Leaf Thickness | 0.19 in |
| Ligature Resistant | No |
| Holes | With |
| Frame Leaf Width | 1-13/16 in |
| Hardware | Yes |
| Fire Rating - Door Hardware | 3 hr |
| Hinge Number | Not Applicable |
| Overall Width | 4-1/2 in |
| Hand Orientation | Non-Handed |
| Mounting Style | Full Mortise |
| Fire Rating | 3 hr |
| Includes Hardware | Hardware Included |
| Removable Pin | Yes |
| Number of Holes per Leaf | 4 |
| Door Thickness - Maximum | 1-3/4 in |
| Corner Type | Square |
| Door Thickness - Minimum | 1-3/4 in |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Pin Diameter | 3/4 in |
| Range of Motion - Maximum | 270 deg |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
