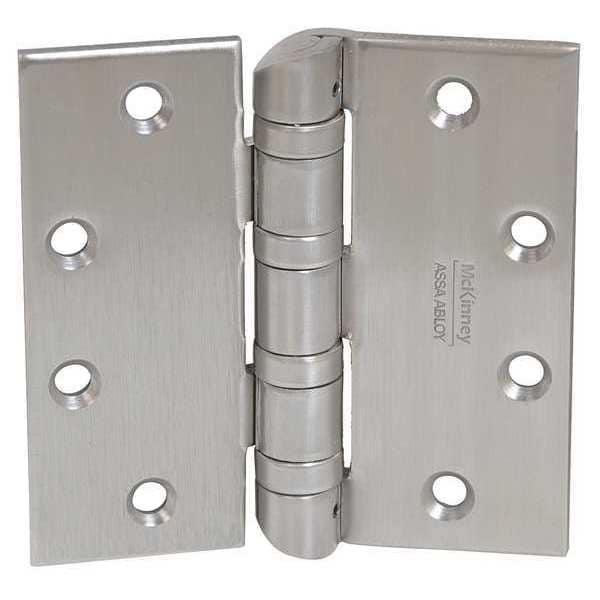

Door and Butt Hinge, Stainless Steel, Full Mortise Mounting, 2 1/8 in Leaf W x 4 1/2 in Leaf H
| Corners | Square |
|---|---|
| Door Leaf Height | 4-1/2 in |
| Door Leaf Thickness | 0.18 in |
| Door Leaf Width | 4-1/2 in |
| Finish | Satin Stainless Steel |
| Holes per Leaf | 4 |
| Load Capacity | 250 lb |
| Material | Stainless Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Pin Dia. | 3/4 in |
| Range of Motion | 270 deg |
| Required Door Thickness | 1-3/4 in |
| Features | Hospital Tip; Five Knuckle Heavy Duty Hinge |
| Item | Door and Butt Hinge |
| Frame Leaf Height | 4-1/2 in |
| Frame Leaf Width | 2-1/8 in |
| Standards | ANSI/BHMA A156.1, NFPA 80, UL Listed |
| Pin Material | Stainless Steel |
| Pin Type | Removable |
| Hardware | Yes |
| Bearing Type | Oil Impregnated |
| Holes | With |
| Fire Rating - Door Hardware | 3 hr |
| Ligature Resistant | Yes |
| Frame Leaf Thickness | 0.18 in |
| Overall Width | 4-1/2 in |
| Hinge Number | Not Applicable |
| Hand Orientation | Non-Handed |
| Includes Hardware | Hardware Included |
| Resistance Properties | Vandal-Resistant |
| Corner Type | Square |
| Removable Pin | Yes |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Fire Rating | 3 hr |
| Range of Motion - Maximum | 270 deg |
| Door Thickness - Minimum | 1-3/4 in |
| Number of Holes per Leaf | 4 |
| Pin Diameter | 3/4 in |
| Mounting Style | Full Mortise |
| Door Thickness - Maximum | 1-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
