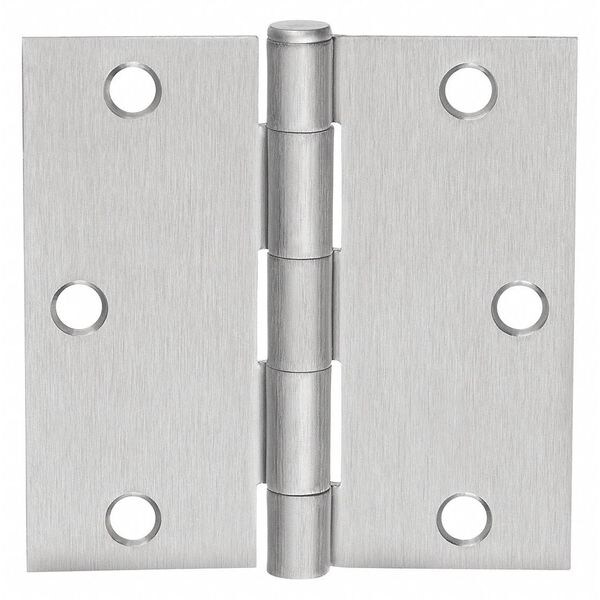

Door and Butt Hinge, Steel, Full Mortise Mounting, 1 1/4 in Leaf W x 3 1/2 in Leaf H
| Corners | Square |
|---|---|
| Door Leaf Height | 3-1/2 in |
| Door Leaf Thickness | 0.099 in |
| Door Leaf Width | 1-1/4 in |
| Finish | Satin Chromium |
| Holes per Leaf | 3 |
| Load Capacity | 150 lb |
| Material | Steel |
| Mounting | Full Mortise |
| Pin Dia. | 0.12 in |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-5/8" to 1-3/4" |
| Features | For Lightweight Doors, Supplied with All Wood Screws as Standard |
| Width | 3-1/2 in |
| Frame Leaf Width | 1-1/4 in |
| Pin Type | Barrel |
| Door Leaf Length | 3-1/2 in |
| Pin Material | Steel |
| Frame Leaf Length | 3-1/2 in |
| Bearing Type | Sleeve |
| Height | 3-1/2 in |
| Color | Silver |
| Hardware | Yes |
| Item | Door and Butt Hinge |
| Door Thickness | 1-5/8 in to 1-3/4 in |
| Holes | With |
| Ligature Resistant | No |
| Leaf Thickness | 0.099 in |
| Overall Width | 3-1/2 in |
| Hinge Number | Not Applicable |
| Frame Leaf Height | 3-1/2 in |
| Frame Leaf Thickness | Not Applicable |
| Hand Orientation | Non-Handed |
| Includes Hardware | Hardware Included |
| Range of Motion - Maximum | 180 deg |
| Corner Type | Square |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Thickness - Minimum | 1-3/4 in |
| Number of Holes per Leaf | 3 |
| Pin Diameter | 1/8 in |
| Mounting Style | Full Surface |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
