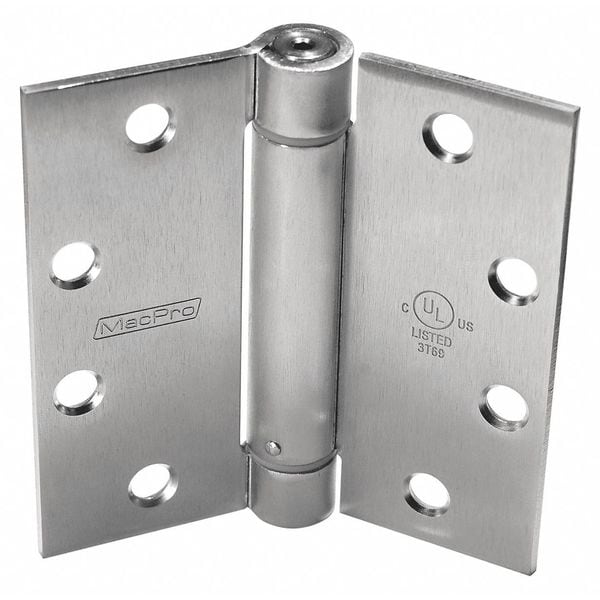

Door and Butt Hinge, Steel, Full Mortise Mounting, 1 7/8 in Leaf W x 4 1/2 in Leaf H, Dull Chromium
| Corners | Square |
|---|---|
| Door Leaf Height | 4-1/2 in |
| Door Leaf Thickness | 0.134 in |
| Door Leaf Width | 2-1/4 in |
| Finish | Dull Chromium |
| Holes per Leaf | 4 |
| Load Capacity | 250 lb |
| Material | Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-3/4 in |
| Features | ANSI/BHMA 156.1, 156.7, 156.17 |
| Item | Door and Butt Hinge |
| Frame Leaf Height | 4-1/2 in |
| Frame Leaf Width | 1-7/8 in |
| Pin Material | Steel |
| Hardware | Yes |
| Standards | ANSI/BHMA 156.1, ANSI/BHMA 156.17, ANSI/BHMA 156.7 |
| Ligature Resistant | No |
| Pin Type | Spring |
| Frame Leaf Thickness | 0.134 in |
| Bearing Type | Plain |
| Holes | With |
| Fire Rating - Door Hardware | 3 hr |
| Hinge Number | Not Applicable |
| Overall Width | 2-1/4 in |
| Hand Orientation | Non-Handed |
| Door Thickness - Minimum | 1-3/4 in |
| Fire Rating | 3 hr |
| Door Thickness - Maximum | 1-3/4 in |
| Number of Holes per Leaf | 4 |
| Includes Hardware | Hardware Included |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Range of Motion - Maximum | 180 deg |
| Corner Type | Square |
| Mounting Style | Full Mortise |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 3 |
