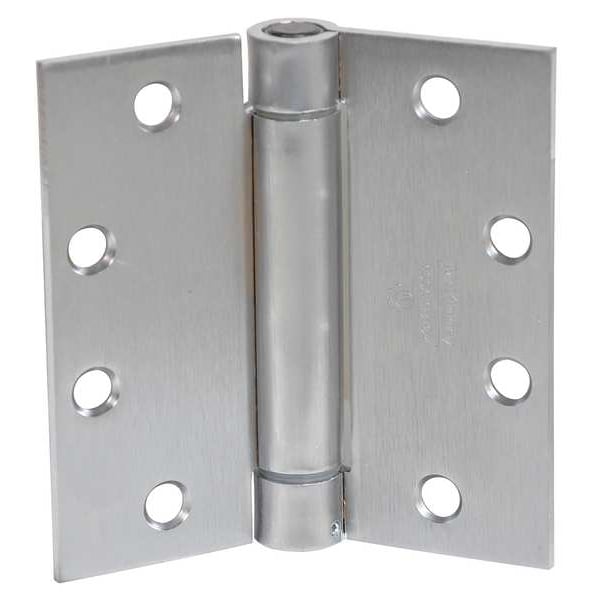

Door and Butt Hinge, Steel, Full Mortise Mounting, 2 1/4 in Leaf W x 4 1/2 in Leaf H
| Corners | Square |
|---|---|
| Door Leaf Height | 4-1/2 in |
| Door Leaf Thickness | 0.19 in |
| Door Leaf Width | 2-1/4 in |
| Finish | Satin Chromium |
| Holes per Leaf | 4 |
| Load Capacity | 250 lb |
| Material | Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Pin Dia. | 23/32 in |
| Range of Motion | 180 deg |
| Required Door Thickness | 1-3/4 in |
| Features | For Use on Lightweight and Self-Closing Doors |
| Holes | With |
| Standards | ANSI/BHMA 156.7 |
| Bearing Type | Anti-Friction |
| Item | Door and Butt Hinge |
| Hardware | Yes |
| Ligature Resistant | No |
| Frame Leaf Width | 2-1/4 in |
| Pin Material | Steel |
| Pin Type | Spring |
| Frame Leaf Thickness | 0.19 in |
| Frame Leaf Height | 4-1/2 in |
| Hinge Number | Not Applicable |
| Overall Width | 4-1/2 in |
| Hand Orientation | Non-Handed |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative, Declare |
| Door Thickness - Maximum | 1-3/4 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Mounting Style | Full Mortise |
| Door Thickness - Minimum | 1-3/4 in |
| Corner Type | Square |
| Number of Holes per Leaf | 4 |
| Range of Motion - Maximum | 180 deg |
| Includes Hardware | Hardware Included |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
