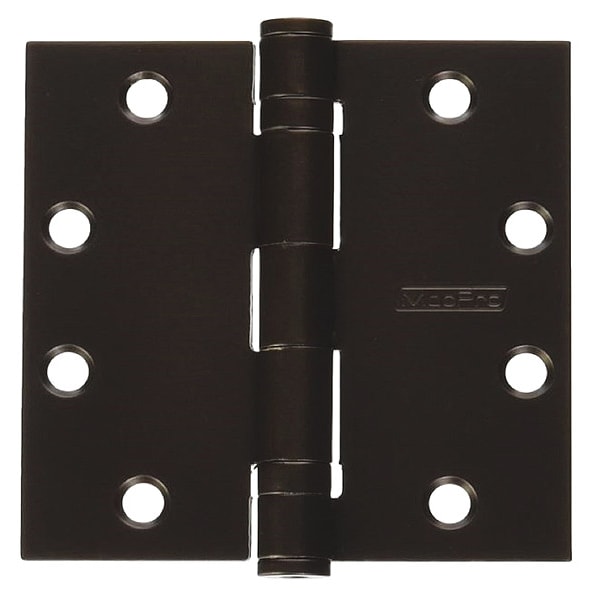

Hinge, Screw-On Mounting, Ball Bearing
| Item | Butt Hinge |
|---|---|
| Material | Steel |
| Finish | Dark Bronze |
| Holes per Leaf | 4 |
| Ligature Resistant | No |
| Door Leaf Height | 4-1/2 in |
| Frame Leaf Height | 4-1/2 in |
| Door Leaf Width | 4-1/2 in |
| Frame Leaf Width | 1-15/16 in |
| Door Leaf Thickness | 0.134 in |
| Frame Leaf Thickness | 0.134 in |
| Bearing Type | Plain |
| Corners | Square |
| Mounting | Screw-On |
| Pin Dia. | 0.31 |
| Pin Type | Barrel |
| Height | 4-1/2 in |
| Width | 4-1/2 in |
| Leaf Thickness | 0.19 in |
| Standards | ANSI/BHMA A156.1, ANSI/BHMA A156.7, NFPA 80 |
| Hinge Number | Not Applicable |
| Features | For Standard Weight Doors Only, use MPB79 or MPB91 if Door has Closing Device, MPB79 and MPB68 Approved for NFPA 80 Fire-Rated Openings |
| Mounting Style | Full Mortise |
| Pin Diameter | 5/8 in |
| Load Capacity | 250 lb |
| Corner Type | Square |
| Number of Holes per Leaf | 4 |
| Overall Width | 4 1/2 in |
| ANSI/BHMA Finish | Dark Oxidized Satin Bronze, Oil Rubbed |
| Hand Orientation | Non-Handed |
| Door Thickness - Minimum | 1 3/4 in |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
