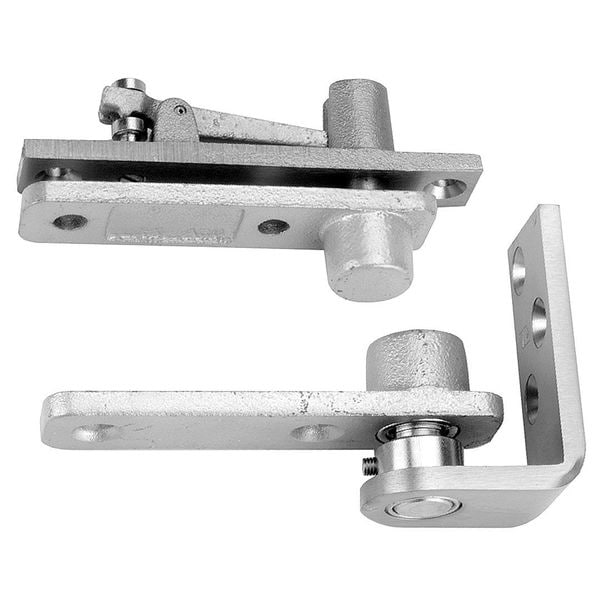

Pivot Hinge, Steel, Center Hung Mounting, 7/8 in Leaf W x Dull Chrome
| Item | Pivot Hinge |
|---|---|
| Material | Steel |
| Finish | Dull Chrome |
| Load Capacity | 135 lb |
| Ligature Resistant | No |
| Range of Motion | 180 deg |
| Orientation | Non Handed |
| Mounting | Hung |
| Bearing Type | Ball |
| Holes per Leaf | 2 |
| Frame Leaf Width | 7/8 in |
| Frame Leaf Thickness | 1/4 in |
| Door Leaf Width | 7/8 in |
| Door Leaf Height | 4-3/8 in |
| Door Leaf Thickness | 1/4 in |
| Features | Thrust Steel Ball Bearing in Bottom Pivot; Oil Impregnated Bronze Bearing in Top Pivot |
| Frame Leaf Dia. | 7/8 in |
| Holes | With |
| Door Leaf Dia. | 7/8 in |
| Required Door Thickness | 1 3/4 in |
| Range of Motion - Maximum | 180 deg |
| Mounting Style | Full Mortise |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Number of Holes per Leaf | 4 |
| Includes Holes | Holes Included |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
