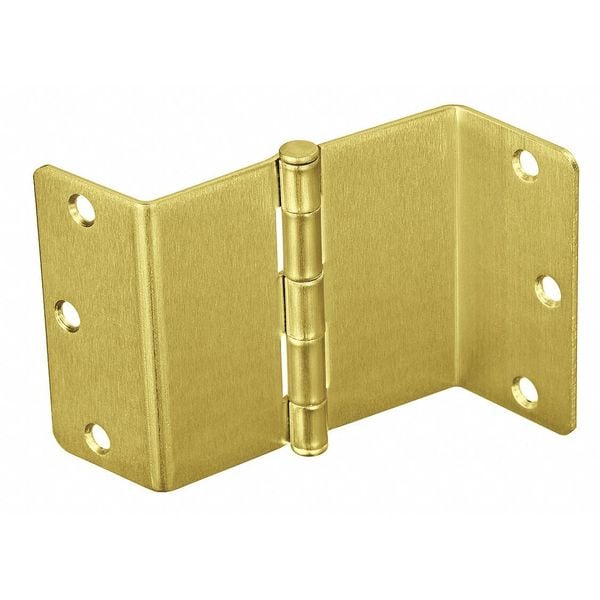

Swing Clear Hinge, Steel, Flush Mounting, 1 1/4 in Leaf W x 3 1/2 in Leaf H, Satin Brass
| Corners | Radius 1-1/4 in |
|---|---|
| Door Leaf Height | 3-1/2 in |
| Door Leaf Thickness | 0.086 in |
| Door Leaf Width | 3-1/2 in |
| Finish | Satin Brass |
| Holes per Leaf | 3 |
| Load Capacity | 150 lb |
| Material | Steel |
| Mounting | Flush |
| Pin Dia. | 1/2 in |
| Range of Motion | 270 deg |
| Frame Leaf Width | 1-1/4 in |
| Door Thickness | 1-3/4 in |
| Pin Material | Steel |
| Ligature Resistant | No |
| Color | Gold |
| Bearing Type | Plain |
| Door Leaf Length | 3-1/2 in |
| Pin Type | Barrel |
| Item | Swing Clear Hinge |
| Leaf Thickness | 0.087 in |
| Standards | ANSI/BHMA A156.1, ANSI/BHMA A156.18, ANSI/BHMA A156.7 |
| Holes | With |
| Height | 3-1/2 in |
| Width | 3-1/2 in |
| Hardware | Yes |
| Frame Leaf Length | 3-1/2 in |
| Frame Leaf Height | 3-1/2 in |
| Frame Leaf Thickness | 0.086 in |
| Hinge Number | Not Applicable |
| Overall Width | 3-1/2 in |
| Hand Orientation | Non-Handed |
| ANSI/BHMA Finish | Satin Brass, Clear Coated |
| Corner Radius | 1/4 in |
| Number of Holes per Leaf | 3 |
| Corner Type | Round |
| Door Thickness - Minimum | 1-3/4 in |
| Mounting Style | Full Surface |
| Includes Hardware | Hardware Included |
| Pin Diameter | 1/2 in |
| Range of Motion - Maximum | 270 deg |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
