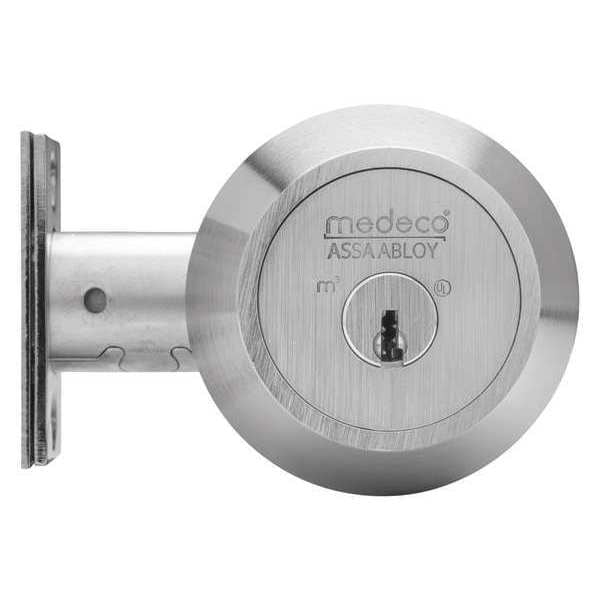

Deadbolt, Double, 2-3/8 in. Backset, 2 Keys
| Mortise / Cylindrical | Cylindrical |
|---|---|
| Location Type | Commercial, Industrial, Institutional, Residential |
| Lockset Grade | 1 |
| Series | 11 |
| For Door Thickness | 1-3/4 to 2 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | Schlage C |
| Key Type | Keyed Different |
| Standards | ANSI/BHMA A156.5, UL 437, UL and cUL Listed |
| ADA Compliant | No |
| Pins | 5 |
| Strike Dim. | 1-1/8 in x 2-1/4 in |
| Cylinder | Double |
| Item | Deadbolt Lock |
| Mortise/Cylindrical | Cylindrical |
| Ligature Resistant | No |
| Backset | 2-3/8 in |
| Number of Keys | 2 |
| Includes | Keys |
| Faceplate Dimensions | 1-1/8 in x 2-1/4 in |
| Lockset Fire Rating | Not Rated |
| Throw Length | 1 in |
| Security Type | Heavy-Duty |
| Material | Brass |
| Strike | Round Corner |
| For Use With | Heavy Duty Doors and Cylindrical Locks |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration) |
| Grade | 1 |
| Application | Commercial |
| Keying | Different |
| Finish | Satin Chrome |
| Number of Pins | 6 |
| ANSI Grade | 1 |
| Visual Indicator Message | Not Applicable |
| Strike Plate Height | 2-1/4 in |
| Locking/Unlocking Access - Outside | Keyway |
| Faceplate Width | 1-1/8 in |
| Includes Core | Core Included |
| Locking/Unlocking Access - Inside | Thumb Turn |
| Faceplate Height | 2-1/4 in |
| Cylinder Core Type | Conventional Core Cylinder |
| Door Thickness - Minimum | 1-3/8 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Ligature-Resistant | Not Ligature-Resistant |
| Strike Plate Width | 1-1/8 in |
| Fire Rating | 3 hr |
| Door Thickness - Maximum | 2-1/2 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
