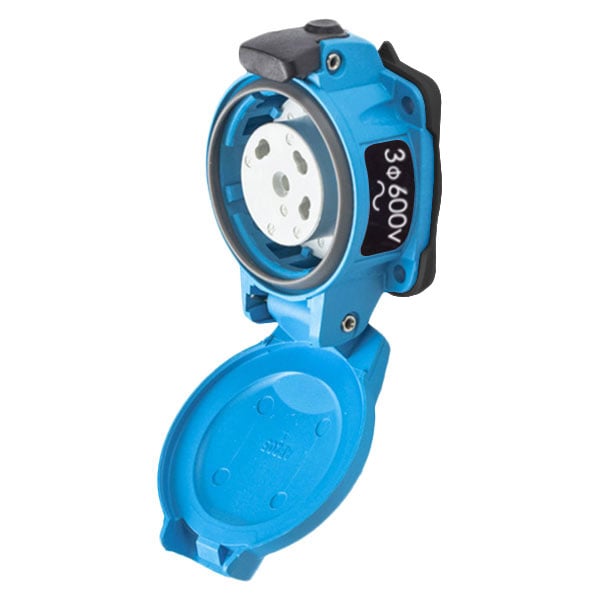

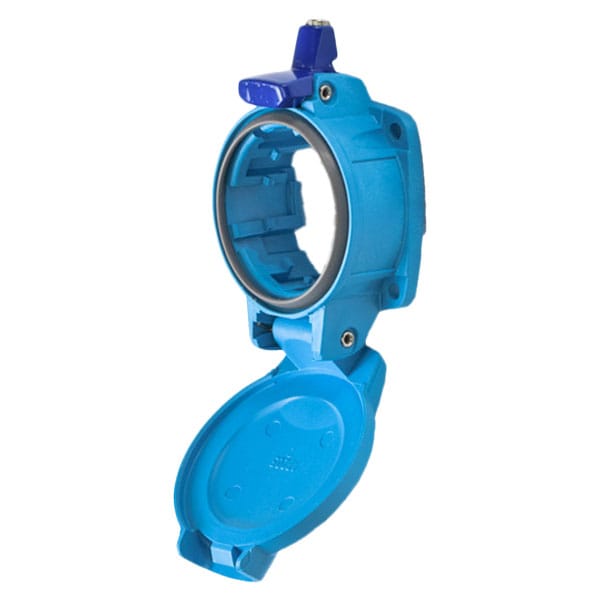

01-N4143-824-300 RECEPTACLE SCREW TYPE LOCKING PAWL
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Voltage | 600V AC |
| Amps - Plugs and Receptacles | 15 A |
| Color - Plugs and Receptacles | Blue |
| Use With | Mating Box MB3 |
| Standards | cCSAus, C22.2 No. 182.1-07, UL 1682 |
| NEMA Rating | 4X |
| Hz | 60 Hz |
| Tightening Torque | Phase: 8 IN-LBS / 0.9 N-M |
| IP Rating | IP66/67 |
| Terminal Type | Screw terminal |
| Number of Notch Positions | 16 |
| Color Code | Black |
| Impact Rating | IK08 |
| Wire Strip Length | Phase: 3/8 in |
| Contact Configuration | 3 P+G |
| Keying Position | 14 |
| Wire Size | 14 AWG to 8 AWG |
| Use With Installation Accessory Size | 1 |
| Operating Temp. Range | -40C to 60C |
| Package Quantity | 1 |
