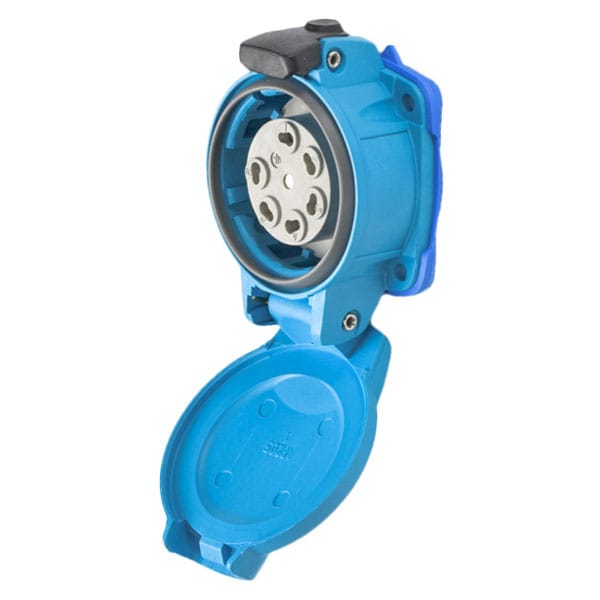

01-P4061-824-300 RECEPTACLE SCREW TYPE LOCKING PAWL
| Body Material - Pin and Sleeve | Polyester |
|---|---|
| Amps - Plugs and Receptacles | 15 A |
| Voltage | 480V AC |
| Color - Plugs and Receptacles | Blue |
| Standards | cCSAus, 155873, C22.2 No. 94.2-15, C22.2 No. 182.1-02, E79796, UL 1682 |
| Use With | Mating Box MB3 |
| Color Code | Blue |
| Keying Position | 1 |
| IP Rating | IP66/67 |
| Wire Size | 18 AWG to 10 AWG |
| Tightening Torque | Phase: 8 IN-LBS / 0.9 N-M |
| Impact Rating | IK08 |
| Wire Strip Length | Phase: 5/16 in |
| Number of Notch Positions | 5 |
| Wire Temperature Rating | 60 deg C |
| Contact Configuration | 6 P+G |
| Operating Temp. Range | -40C to 60C |
| Terminal Type | Screw terminal |
| Use With Installation Accessory Size | 1 |
| Hz | 60 Hz |
| Package Quantity | 1 |
