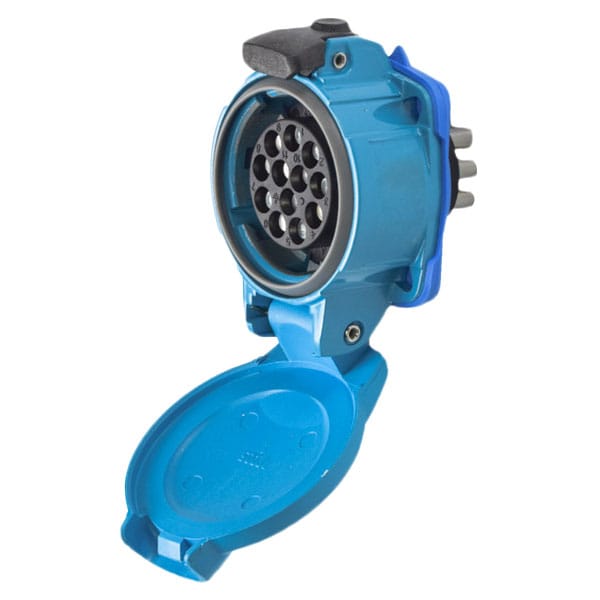

07-A4001-824-300 RECEPTACLE SCREW TYPE LOCKING PAWL
| Body Material - Pin and Sleeve | Zamak |
|---|---|
| Voltage | 600V AC/130V DC |
| Amps - Plugs and Receptacles | 2 A/7.5 A |
| Color - Plugs and Receptacles | Blue |
| Use With | Mating Box MB3 |
| Load Break Amp Rating | 2 A |
| Number of Notch Positions | 2 |
| Wire Strip Length | Phase: 25/64 in |
| Wire Size | 18 AWG to 14 AWG |
| Contact Configuration | 11 P+G |
| Hz | 60 Hz |
| Impact Rating | IK08 |
| Operating Temp. Range | -40C to 60C |
| Color Code | Blue |
| Terminal Type | Solder/Crimp terminal |
| Keying Position | 1 |
| IP Rating | IP66/67 |
| Use With Installation Accessory Size | 1 |
| Package Quantity | 1 |
