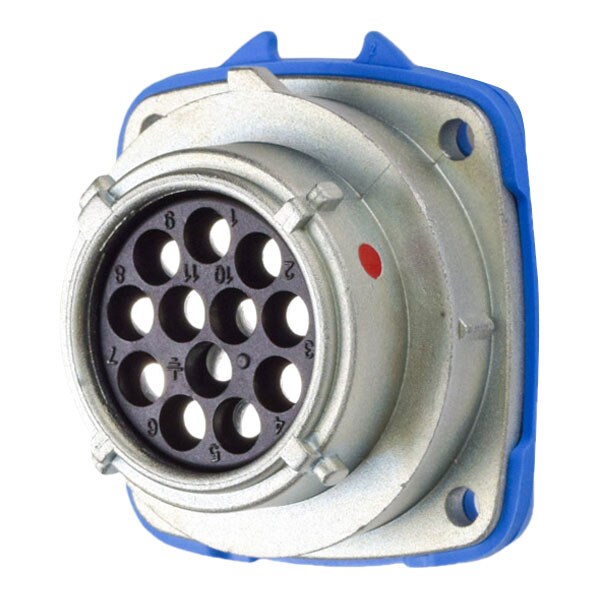

El tomacorriente 07-A8001-001 reversible es una solución eficiente y segura para sus necesidades de conexión eléctrica. Diseñado para interiores, este producto cumple con los más altos estándares de calidad y seguridad.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Voltage Rating | 600V AC |
| Number of Wires | 4 |
| IP Rating | IP67, IP66 |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Use With | Mating Box MB3 |
| Voltage | 600V AC/130V DC |
| Body Material | Zamak |
| Use With Installation Accessory Size | 1 |
| Contact Configuration | 11 P+G |
| Impact Rating | IK08 |
| Color Code | Blue |
| Load Break Amp Rating | 2 A |
| Wire Size | 18 AWG to 14 AWG |
| Terminal Type | Solder/Crimp terminal |
| Hz | 60 Hz |
| Operating Temp. Range | -40C to 60C |
| Wire Strip Length | Phase: 25/64 in |
| Keying Position | 1 |
| Number of Notch Positions | 2 |
| Package Quantity | 1 |
