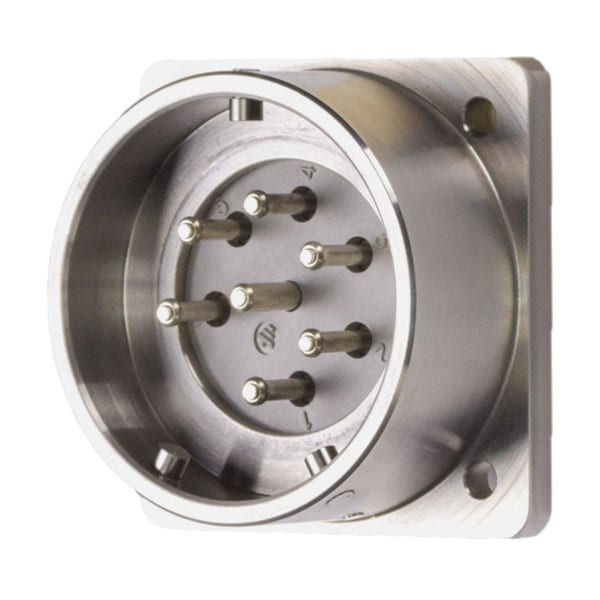

09-04051-SS-001 INLET REVERSE INTERIORS
| Body Material - Pin and Sleeve | Stainless steel |
|---|---|
| Amps - Plugs and Receptacles | 15 A |
| Voltage | 480V AC |
| Color - Plugs and Receptacles | Metal |
| Use With | Mating Box 09-2A053-080-SS-xx |
| Operating Temp. Range | -40C to 60C |
| Terminal Type | Screw terminal |
| Keying Position | 1 |
| Hz | 60 Hz |
| Number of Notch Positions | 5 |
| Use With Installation Accessory Size | 1 |
| Wire Temperature Rating | 60 deg C |
| Contact Configuration | 5 P+G |
| Tightening Torque | Phase: 8 IN-LBS / 0.9 N-M |
| Wire Size | 18 AWG to 10 AWG |
| Impact Rating | IK09 |
| Color Code | Blue |
| Wire Strip Length | Phase: 5/16 in |
| Load Break Amp Rating | 15 A |
| Package Quantity | 1 |
