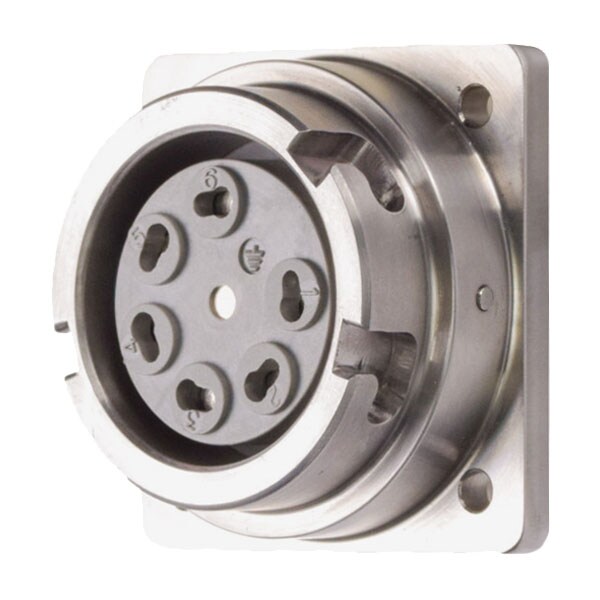

El receptáculo interior reversible 09-08051-SS-001 de Meltric ofrece una solución segura y confiable para sus necesidades de conexión eléctrica. Diseñado para facilitar la instalación y garantizar un rendimiento óptimo en aplicaciones industriales.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 15 A |
| Voltage Rating | 480V AC |
| Wire Connection Type | Screw Terminals |
| Housing Color | Metal |
| Cap Type | No Cap or Cover |
| Voltage | 480V AC |
| Body Material | Stainless steel |
| Use With | Mating Box 09-2A053-080-SS-xx |
| Color Code | Blue |
| Tightening Torque | Phase: 8 IN-LBS / 0.9 N-M |
| Impact Rating | IK09 |
| Operating Temp. Range | -40C to 60C |
| Wire Strip Length | Phase: 5/16 in |
| Use With Installation Accessory Size | 1 |
| Keying Position | 1 |
| Load Break Amp Rating | 15 A |
| Wire Temperature Rating | 60 deg C |
| Terminal Type | Screw terminal |
| Number of Notch Positions | 5 |
| Contact Configuration | 5 P+G |
| Hz | 60 Hz |
| Wire Size | 18 AWG to 10 AWG |
| Package Quantity | 1 |
