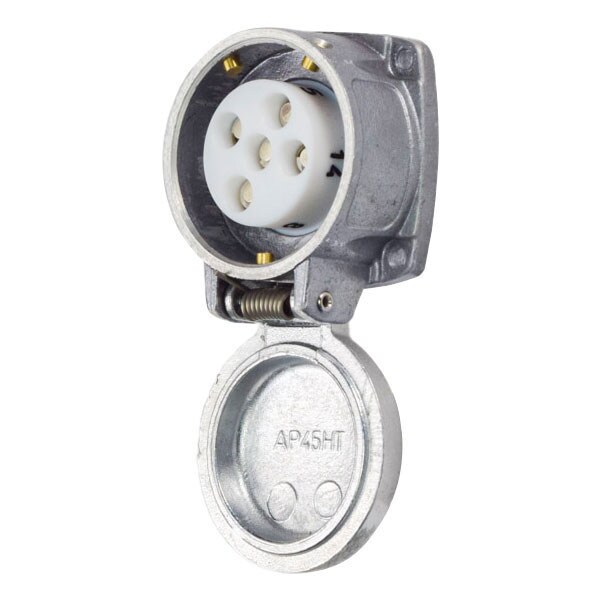

El receptáculo 09-24047-185 de alta temperatura de Meltric está diseñado para soportar condiciones de temperatura extrema, proporcionando seguridad y confiabilidad en entornos de trabajo exigentes. Fabricado con materiales de alta calidad para garantizar un rendimiento óptimo.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 277/480V AC |
| Number of Wires | 4 |
| IP Rating | IP44 |
| Wire Connection Type | Screw Terminals |
| Housing Color | Metal |
| Cap Type | No Cap or Cover |
| Voltage | 277/480V AC |
| Use With | Mating Box MB3-NP |
| Body Material | Aluminum |
| Terminal Type | Screw terminal |
| Tightening Torque | Phase: 8 IN-LBS / 0.9 N-M |
| Use With Installation Accessory Size | 1 |
| Operating Temp. Range | 465F (240C); -40F (-40C) |
| Color Code | Red |
| Contact Configuration | 3P+N+G |
| Wire Size | 14 AWG to 8 AWG |
| Wire Strip Length | Phase: 3/8 in |
| Hz | 60 Hz |
| Keying Position | 4 |
| Number of Notch Positions | 7 |
| Impact Rating | IK09 |
| Package Quantity | 1 |
