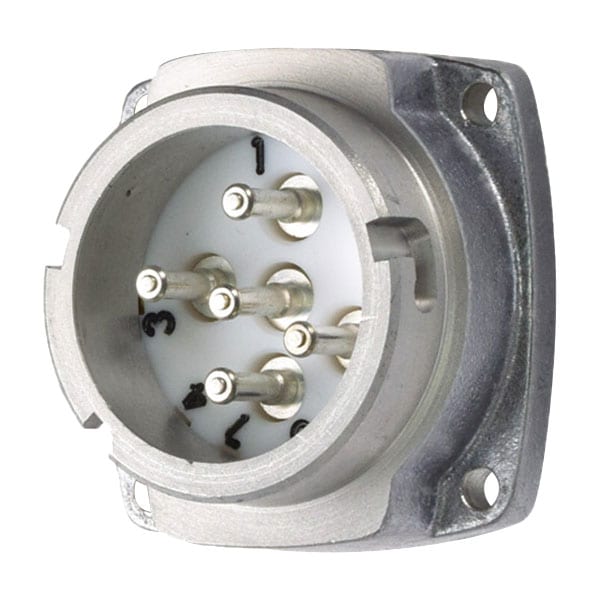

09-28077-185 INLET HIGH TEMPERATURE
| Body Material - Pin and Sleeve | Aluminum |
|---|---|
| Amps - Plugs and Receptacles | 30 A |
| Voltage | 125/250V AC |
| Color - Plugs and Receptacles | Metal |
| Use With | Mating Box MB3-NP |
| Tightening Torque | Phase: 8 IN-LBS / 0.9 N-M |
| Hz | 60 Hz |
| Keying Position | 7 |
| Number of Notch Positions | 7 |
| Terminal Type | Screw terminal |
| Impact Rating | IK09 |
| Use With Installation Accessory Size | 1 |
| Operating Temp. Range | 465F (240C); -40F (-40C) |
| IP Rating | IP44 |
| Wire Size | 14 AWG to 8 AWG |
| Contact Configuration | 3P+N+G |
| Wire Strip Length | Phase: 3/8 in |
| Color Code | Orange |
| Package Quantity | 1 |
