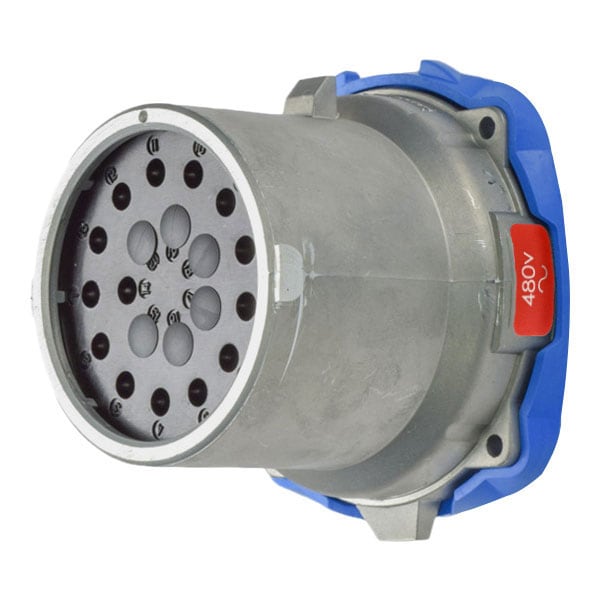

17-68131-A188 INLET STRAIGHT INSERTION
| Body Material - Pin and Sleeve | Zamak |
|---|---|
| Amps - Plugs and Receptacles | 15 A |
| Voltage | 480V AC/130V DC |
| Color - Plugs and Receptacles | Metal |
| HP | 3 |
| Standards | cCSAus, 155873, C22.2 No. 94.2-15, C22.2 No. 182.1-13 |
| Use With | Mating Box MB10 |
| Keying Position | 1 |
| Wire Strip Length | Phase: 1/2 in |
| Use With Installation Accessory Size | 5 |
| Tightening Torque | Phase: 4.50 IN-LBS / 0.5 N-M |
| Short Circuit Current Rating | 10 KA - WITHSTAND |
| Operating Temp. Range | -40C to 60C |
| Terminal Type | Screw terminal |
| Wire Size | 16 AWG to 10 AWG |
| Impact Rating | IK09 |
| Hz | 60 Hz |
| Contact Configuration | 13 P+G |
| Color Code | Blue |
| Number of Notch Positions | 4 |
| IP Rating | IP54/55 |
| Package Quantity | 1 |
