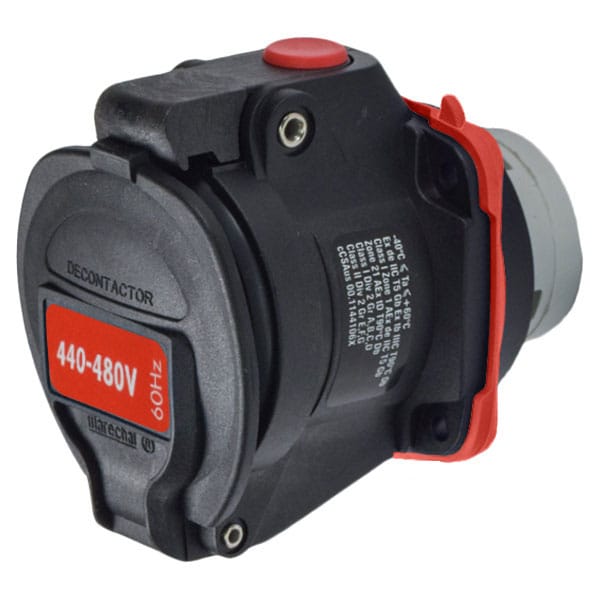

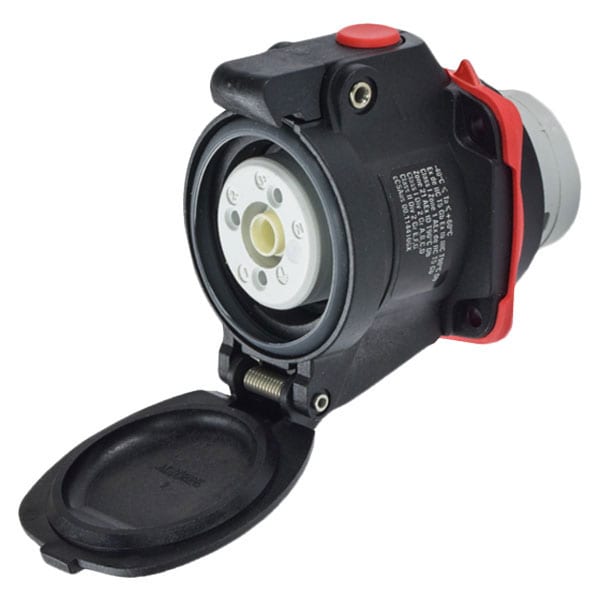

22-14043-R RECEPTACLE NORMALLY CLOSED LID
| Material | Poly |
|---|---|
| Color | Black |
| Contact Configuration | 3P+G |
| Number of Notch Positions | 24 |
| Phase Cond. Strip Len. | 1/2 in |
| Wiring Capacity | 16 AWG - 10 AWG |
| Frequency | 60 Hz |
| Load Break, Normal Operation | 20A |
| Horsepower Rating | 7.5 HP |
| CSA Listing | cCSAus || 208161 || C22.2 No. 182.1-13 |
| Voltage Color Code | Red |
| Short Circuit Rating, Fusing | 25 KA 30A (400%) RK1 NTD |
| Maximum Operating Temperature | 140 F |
| Accessory Size | 1 |
| Short Circuit Rating | 25 KA - MAKE & WITHSTAND |
| Rated Current | 20 A |
| Rated Voltage | 480 VAC |
| Minimum Operating Temperature | -40F (-40C) |
| Keying Position | 4 |
| Primary IP Rating | 66/67 |
| Load Break, Abnormal Overload | 30A |
| Phase Terminal Tightening Torque | 7.1 IN-LBS / 0.8 N-M |
| Phase Terminal Type | Screw terminal |
| Wire Temperature Rating | 60C |
| Impact Rating | IK08 |
| Package Quantity | 1 |
